63-7660-89 Phoenix Contact, 9 Pole D-sub Connector, Female Interface Module 2315162
model:
63-7660-89
brand:
Phoenix Contact
Product Description
Product Model: 63-7660-89Product Brand: Phoenix Contact […]
Contact Us
Product Details
Product Model: 63-7660-89
Product Brand: Phoenix Contact
Features
- VIP VARIOFACE. The new compact housing designs have passive modules. Versions with the screw connection method are available for FLK connectors (10 to 64 positions) and D-SUB connectors (9 to 50 positions). The program also includes six potential distributor modules with two potentials each. New housing concept enables narrow modules widths Professional outline of the new product range Marking material like Zack marker strips can be ***d for labelling modules. FLK modules transfer 1 A/60 V AC/DC D-SUB modules transfer 2.5 A/125 V AC/DC Potential distributor modules transfer 30 A/ 250 V AC/DC
Spec
- Quantity:1piece
- G***er : Female
- Wire Size : 24 → 12 AWG
- Number of Contacts : 9
- Connector Type : D-sub
- Body Orientation : Straight
- Voltage Rating : 25 V ac, 60 V dc
- Current Rating : 2A
- Dimensions : 34.7 x 45.1 x 65.5mm
- Depth : 65.5mm
- Length : 34.7mm
- Minimum Operating Temperature : -20°C
- CODE No.:667-0052
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

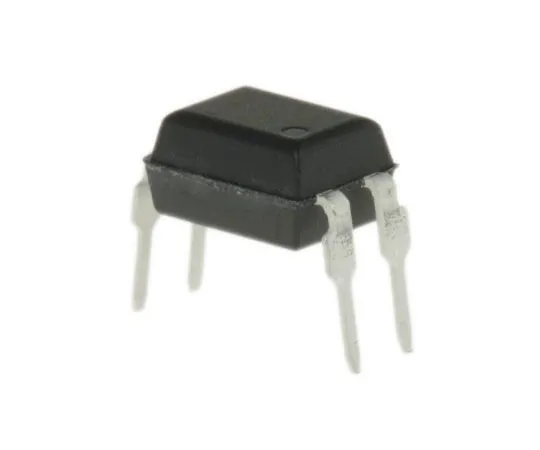

63-7698-28 Lite-On, LTV-817A DC Input Transistor Output Optocoupler, Through Hole, 4-Pin PDIP LTV-817A
