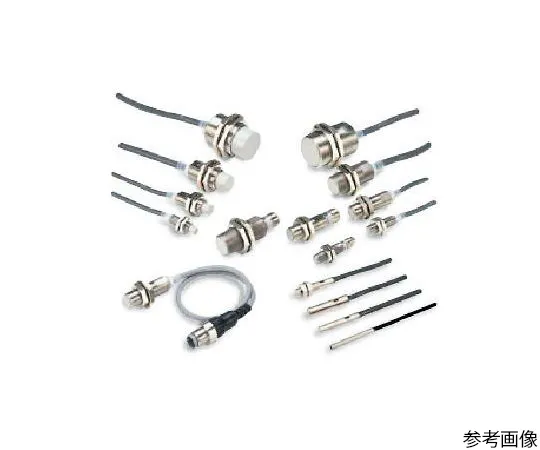

64-5648-02 Proximity sensor standard type E2E-X8MD1
Product Description
Product Model: 64-5648-02Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 64-5648-02
Product Brand: OMRON Corporation
Spec
- Self-diagnostic output function: No
- Shape: Unshielded (M 12)
- Detection distance: 8mm
- Operating mode: NO
- Power supply voltage: 12 ~ 24 VDC ripple (p-p) 10% or less (10 ~ 30 VDC)
- Leakage current: 0.8 mA or less
- Ambient temperature: Operating: -25 to + 70 C Storage: -40 to + 85 C (However, it must not be frozen or condensed.)
- Insulation resistance: 50 megohms or more (at 500 VDC mega) between the charging unit and the case
- Withstand voltage: 1000 VAC, 50/60 Hz, 1 min, between charging unit and case
