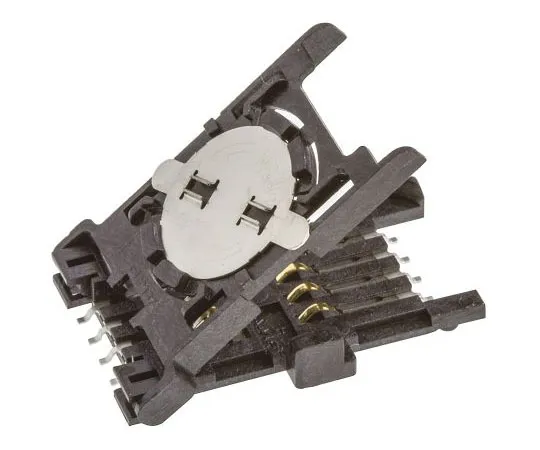

63-7623-71 TE Connectivity 8 Way SAM, SIM SIM Card Connector With Solder Termination 5145299-2
model:
63-7623-71
brand:
TE Connectivity
Product Description
Product Model: 63-7623-71Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7623-71
Product Brand: TE Connectivity
Features
- SAM Connector, twist-lock. Accepts GSM 11.11 SIM cards SMT mounting Phosphor bronze contacts with duplex gold over nickel-plating on mating area High temperature thermoplastic housing Stainless steel locking disk
Spec
- Quantity:1set(1000pieces)
- Card Type : SAM, SIM
- G***er : Male
- Number of Contacts : 8
- Number of Rows : 2
- Pitch : 2.54mm
- Body Orientation : Straight
- Mounting Type : Surface Mount
- Contact Material : Phosphor Bronze
- Contact Plating : Gold over Nickel
- Termination Method : Solder
- Housing Material : Thermoplastic
- Length : 20mm
- Width : 4.05mm
- Depth : 29.9mm
- Dimensions : 20 x 4.05 x 29.9mm
- CODE No.:163-9541
