63-7606-99 RS PRO Steel 15 Teeth Spur Gear, 22.5mm Pitch Diam. , 18mm Hub Diam. , 8mm Bore Diam. 521-6402
Product Description
Product Model: 63-7606-99Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7606-99
Product Brand: RS PRO
Features
- DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent. SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width. Steel Metric Spur Gears. RS Pro high quality steel spur gears in a range of gear ratios. Ideally ***d for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems. Features and Benefits. Steel EN8 (080M40/080M46) or equivalent Tensile strength: 569N/mm ;sup>2 ;/sup> (min.) 20° pressure angle
Spec
- Quantity:1piece
- Module : 1.5
- Number of Teeth : 15
- Material : Steel
- Bore Diameter : 8mm
- Hub Diameter : 18mm
- Pitch Diameter : 22.5mm
- Face Width : 15mm
- CODE No.:521-6402
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

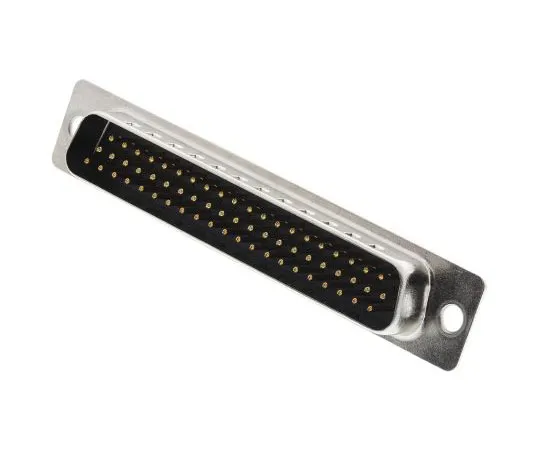

63-7657-78 Harting Cable Mount, 62 Pin D-sub Connector Plug, Shell Size C High Density 9564005604
