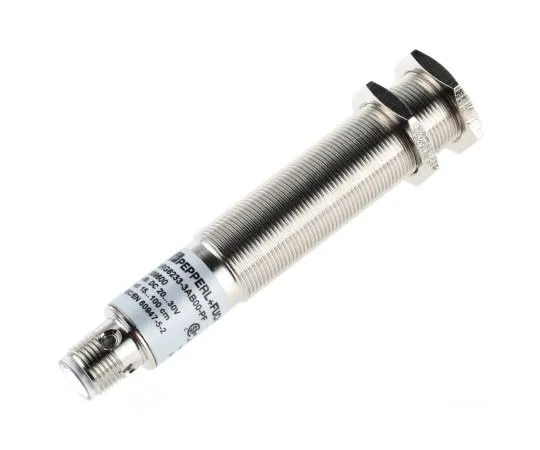

63-7594-67 Pepperl + Fuchs Ultrasonic Sensor Barrel M18 x 1, 150 → 1000 mm, PNP-NO, M12 - 4 Pin IP67 3RG6233-3AB00-PF
model:
63-7594-67
brand:
Pepperl + Fuchs
Product Description
Product Model: 63-7594-67Product Brand: Pepperl + Fuchs […]
Contact Us
Product Details
Product Model: 63-7594-67
Product Brand: Pepperl + Fuchs
Features
- CE. Sonar BERO 3RG62 - ultrasonic sensor, switching or analogue output. Ultrasound proximity switch, 300 / 1000 mm Cylindrical design Switching or analogue output Can be adjusted using a potentiometer or via teach-in Foreground and background suppression Synchronisable, multiplex operation Reflection button and switch operating mode and one-way barrier possible LED status display
Spec
- Quantity:1piece
- Detection Range : 150 → 1000 mm
- Output Type : PNP-NO
- Body Style : Barrel
- Thread Size : M18 x 1
- Transducer Frequency : 200kHz
- Diameter : 18 mm
- Maximum DC Voltage : 30V
- Supply Voltage : 12 → 30 V dc
- Terminal Type : M12 - 4 Pin
- IP Rating : IP67
- Housing Material : Nickel Plated Brass
- Maximum Operating Temperature : +70°C
- CODE No.:506-2750
