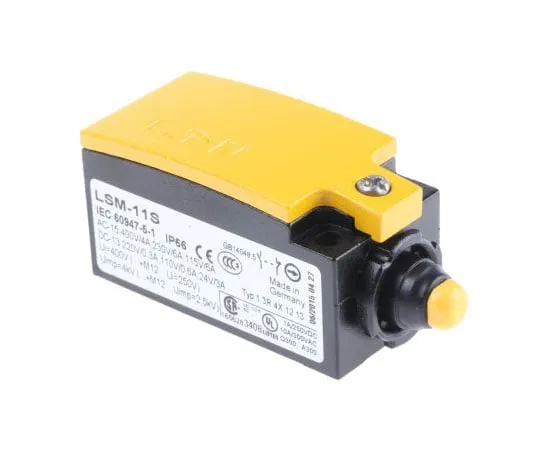

63-7571-30 IP66, IP67 Snap Action Limit Switch Plunger Metal, NO/NC, 415V 266140 & LSM-11S
Product Description
Product Model: 63-7571-30Product Brand: Eaton Features […]
Contact Us
Product Details
Product Model: 63-7571-30
Product Brand: Eaton
Features
- LS-Titan Metal Body. Modular system Conforms to EN 50047 IP66 protection rating Standard action or snap-action contacts, early break (EB)/Late break (LB) option available Interlocked opposing contacts for positive operation Cage clamp terminals which are maintenance free and vibration proof Operating heads can be installed in a choice of 4 positions A choice of operating heads, plunger, lever, rotary, rod Suitable for *** with electronic devices
Spec
- Quantity:1piece
- Actuator Type : Plunger
- Normal State Configuration : NO/NC
- IP Rating : IP66, IP67
- Maximum Current : 6 A
- Housing Material : Metal
- Maximum AC Voltage : 415V
- Maximum DC Voltage : 220V
- Connection Type : Cage Clamp
- Series : LS-Titan
- Contact Type : Snap Action
- Terminal Type : Screw
- Length : 76mm
- Width : 33.5mm
- Mechanical Life Minimum : 8 x 10⁶ cycles
- CODE No.:478-1393
