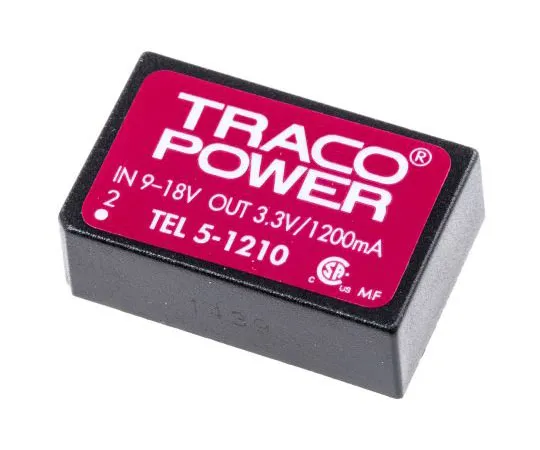

63-7562-54 TRACOPOWER TEL 5 5W Isolated DC-DC Converter Through Hole, Voltage in 9 → 18 V dc, Voltage out 3.3V dc TEL 5-1210
Product Description
Product Model: 63-7562-54Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-7562-54
Product Brand: TRACOPOWER
Features
- EN 60950-1, UL60950-1. Operating temperature is derated above 70° C, 2% Per °C. 3. Traco 3.96 to 6W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEL 5 Series. Wide 2:1 input range 1.5kV input/output isolation Input filtering to EN 55022A Continuous short circuit protection 24-pin DIP with industry standard pin-out
Spec
- Quantity:1piece
- Output Voltage : 3.3V dc
- Input Voltage Range : 9 → 18 V dc
- Input Voltage Nominal : 12 V dc
- Isolation Voltage : 1.5kV
- Power Rating : 5W
- Output Current : 1.2A
- Mounting Type : Through Hole
- Number of Outputs : 1
- Package : DIP 24, PDIP
- Load Regulation : ±1%
- Maximum Temperature : +85°C
- Depth : 10mm
- CODE No.:466-7045
