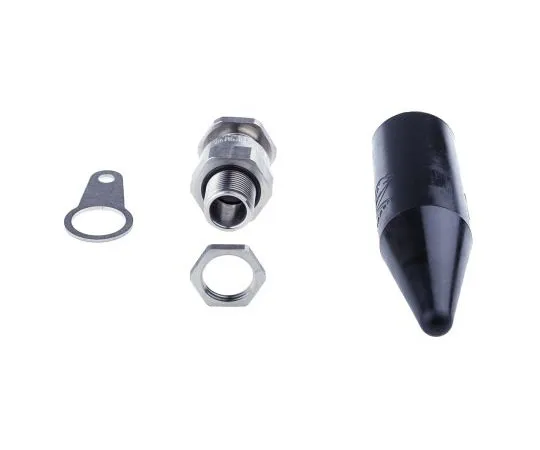

63-7558-28 Peppers M20 Cable Gland Kit, includes Gland, Lock Nuts, Seal, Washer A2LSFK1/20/M20
Product Description
Product Model: 63-7558-28Product Brand: Peppers Feature […]
Contact Us
Product Details
Product Model: 63-7558-28
Product Brand: Peppers
Features
- Locknut, earth tag, integral O ring seal and black PCP shroud. IP68 Metric Stainless Steel A2LF Gland. The IP68 metric stainless steel gland provides a controlled pull resistant environmental displacement seal on cables outer sheaths. This minimises damage to cold flow characteristic cables. The glands maintain IP66 and IP68 up to 25 m. They are also deluge proof without using any additional seals or deluge boots. Features and Benefits. ; For *** with PVC/PVC PILC/PVC XPLE/PVC Cables ; Stainless steel flameproof gland reference A2LF ; Int***ed for *** with non-armoured cables ; Approval certificate available on request
Spec
- Quantity:1piece/set
- Thread Size : M20
- Material : Stainless Steel
- Minimum Cable Diameter : 9.6mm
- Maximum Cable Diameter : 14mm
- Kit Includes : Gland, Lock Nuts, Seal, Washer
- IP Rating : IP66, IP68
- Number of Cores : 1
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +85°C
- Number of Pieces : 1
- Hazardous Area Certification : ATEX
- CODE No.:458-4237
