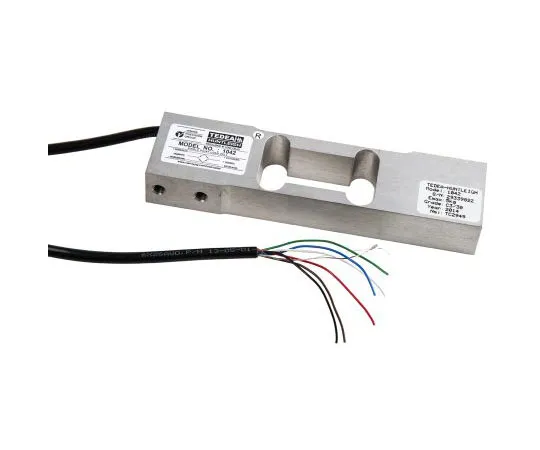

63-7546-37 Tedea Huntleigh Compression Load Cell 5kg, 15V dc, IP66 1042-0005-F000-RS
model:
63-7546-37
brand:
Tedea Huntleigh
Product Description
Product Model: 63-7546-37Product Brand: Tedea Huntleigh […]
Contact Us
Product Details
Product Model: 63-7546-37
Product Brand: Tedea Huntleigh
Features
- Low Profile Aluminium. Compensated Temperature Range -10 to +40°C Output Impedance 350 +/- 3Ω Termination Type: Cable Ultimate Overload: 300% of Rated Load. 1042 series low profile single point load cell designed for direct mounting of low cost weighing platforms. Has a humidity resistant protective coating, which assures long term stability over the entire compensated temperature range. Dimensions: 20 x 40 x 150mm (1 to 30kg); 25.2 x 40 x 150mm (50 to 100kg) For Output signal conditioners see (stock no. ; 455-5043 455-5043 )
Spec
- Quantity:1piece
- Force Measured : Compression
- Force/ Load Measurement Range : 5kg
- Maximum Excitation Voltage : 15V dc
- Output At Rated Load : 2mV/V
- Housing Material : Aluminium
- IP Rating : IP66
- Terminal Type : Wire Lead
- Overall Height : 40mm
- Overall Width : 150mm
- Overall Depth : 20mm
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +40°C
- Sensor Type : Single Point
- CODE No.:443-8134
