Electronic/Electrical Parts and Controll Equipments

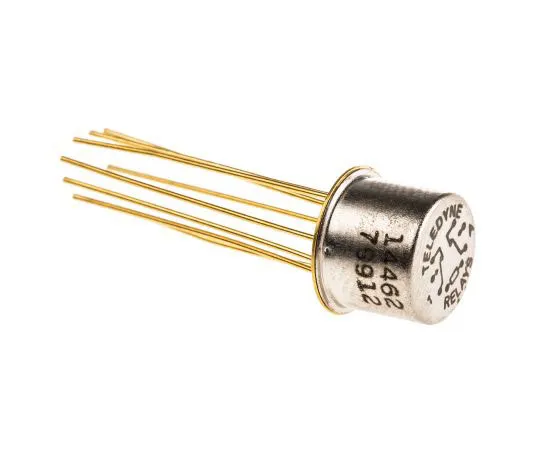

63-7527-30 DPDT PCB Mount, RF Relay 12V dc ER412-12A
Product Description
Product Model: 63-7527-30Product Brand: Teledyne Featur […]
Contact Us
Product Details
Product Model: 63-7527-30
Product Brand: Teledyne
Features
- TO-5 RF Relay - ER412 Series. Signal switching from dc to 1.0GHz Highly ESD resistant, EMI shielding 10μA-10mV to 28Vdc switching range Hermetically sealed Operating temperature -65 to +125°C H25.91xDia.9.4mm
Spec
- Quantity:1piece
- Coil Resistance : 390 Ω
- Contact Resistance : 100 mΩ
- Insertion Loss : 0.4dB GHz@ 1
- Isolation : 35dB GHz@ 2.0
- VSWR Voltage Standing Wave Ratio : 1.07 GHz@ 1.0
- Contact Configuration : DPDT
- Coil Voltage : 12V dc
- Mounting Type : PCB Mount
- Coil Power : 405mW
- Contact Material : Gold Plated Metal Alloy
- Minimum Operating Temperature : -65°C
- CODE No.:399-9385
