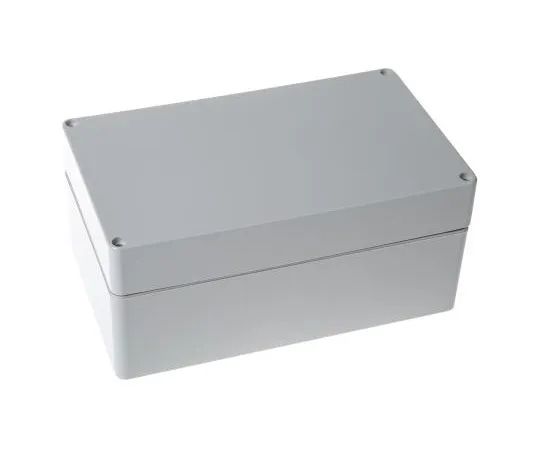

63-7508-88 Bopla Euromas, ABS Enclosure, IP66, Flanged, 200 x 120 x 90mm 3237000
Product Description
Product Model: 63-7508-88Product Brand: Bopla Features […]
Contact Us
Product Details
Product Model: 63-7508-88
Product Brand: Bopla
Features
- Euromas ABS Enclosures. Introducing a range of ABS enclosures from Bopla. The Euromas ABS range is an excellent choice to ho*** electronic and electrical components, made of ABS plastic and presented in a light grey colour similar to (RAL7035). These general-purpose enclosures are the ideal solution for all your enclosure protection both indoors and outdoors. Why would you buy these enclosures? The Euromas series is the ideal solution for contractors and engineers who require protection for sensitive electrical and electronic components in industrial applications. Our range offers multiple sizes and a choice of IP ratings to suit your needs. Features ; Benefits. ABS general purpose enclosures (UV stabilised) Industrial application Multiple sizes available to meet your specification Recyclable High impact resistance Colour: Light grey (similar to RAL 7035) Wall mountable Corrosion resistant Flammability rating: UL 94 HB IP65 / DIN EN 60529. (IP) Ingress Protection and what it means. IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact and water in electrical enclosures. Typical Applications. Cable/Wire Management IT/Server Solar Power Batteries Oil and Gas Production Food and Beverage Industry Telecommunication Industry. Compatible Accessories Bopla wall bracket for Euromas II; RS stock no: ; 266-3647 266-3647. Frequently Asked Questions. Can the enclosure be ***d outside? General purpose enclosures with an IP65 rating is fully waterproof/weatherproof. Does this product have RFI shielding? No, this product does not have RFI shielding What is supplied? Lid and base, lid screws made of V2A, self-tapping screws for mounting bosses
Spec
- Quantity:1piece
- Body Material : ABS
- Gasket Material : Polychloroprene
- External Length : 200 mm
- External Width : 120 mm
- External Height : 90 mm
- IP Rating : IP66
- Colour : Light Grey
- Lid Colour : Grey
- Flanged : Yes
- Series : Euromas
- Shielded : No
- Weight : 401g
- CODE No.:364-8453
