Electronic/Electrical Parts and Controll Equipments

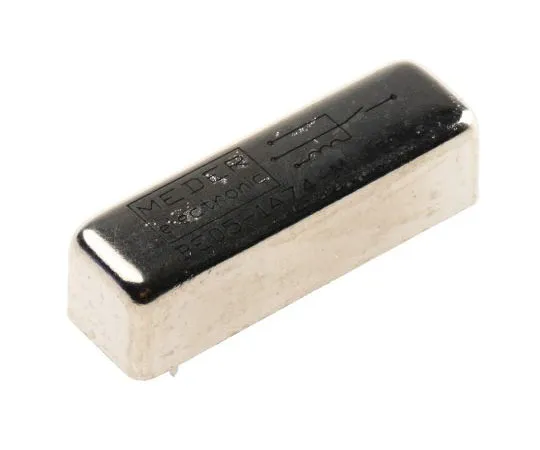

63-7502-04 SPNO Reed Relay, 5V dc BE05-1A74-M
Product Description
Product Model: 63-7502-04Product Brand: Meder Features […]
Contact Us
Product Details
Product Model: 63-7502-04
Product Brand: Meder
Features
- SPNO Reed Relay BE Series. Sealed with PU resin Encapsulated in a nickel-plated steel case for magnetic screening Contact Material Ru Maximum switching current 1A Vibration resistance: 10g at 10-2000 Hz Operating temperature range: -20°C to +70°C
Spec
- Quantity:1piece
- Contact Configuration : SPNO
- Coil Voltage : 5V dc
- Mounting Type : PCB Mount
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 200V dc
- Coil Power : 72mW
- Coil Resistance : 345 Ω
- Length : 32.4mm
- Height : 10mm
- Depth : 9.5mm
- Dimensions : 32.4 x 9.5 x 10mm
- Isolation Coil To Contact : 2kV ac
- Minimum Operating Temperature : -20°C
- CODE No.:349-1796
