Features

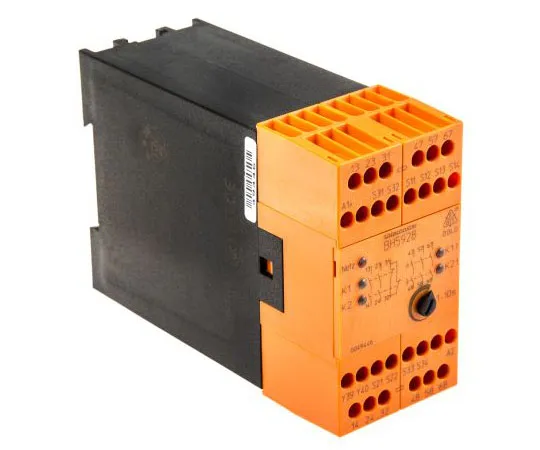

• EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1. With its gold-plated contacts the BG 5928 is also suitable for switching low voltages 1 mVA → 7 VA, 1 mW → 7 W in the 0.1 → 60 V, 1 → 300 mA range. The contacts also allow the max. switching current. As the gold finish would be burnt off at this current rating, the device would no longer be suitable for switching low voltages. Emergency stop module with time delay for SK4, BH5928. Safety category 4 in accordance with DIN EN 954 Output: 2 N/O, 1 N/C as immediate contacts and 3 off-delay N/O contacts 1 or 2-channel configuration Line termination detection on the ON button Optional activation via the ON button or automatic ON function when the operating voltage is met Programmable: With / without cross-fault detection in the emergency stop-control loop LED indicators for network, channel 1//2 and time delay With removable terminal clamps Internal fusing with PTC and VDR Overall width 45 mm
