Features

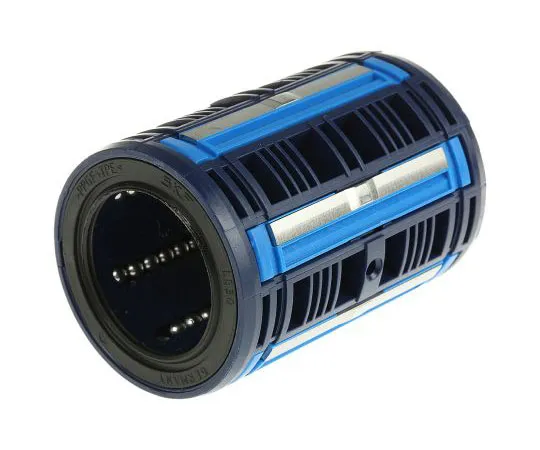

• Linear bearings, LBCD. Standard linear bearings LBCD from ISO range 3 Automatic self-alignment of max. ±30 angular minutes Non-parallels between drive shaft and housing bore, produced by shaft deflection or assembly or manufacturing inaccuracies, can be compensated Misalignments of drive shafts with one another cannot be compensated Angled pivoting of bearings is possible thanks to special outer contour of runner plates Pivotable cage reduced in outer diameter Bearings fitted in housing and sealing or cover discs always central to drive shaft All other features of LBCR linear bearings are the same for the angle-adjustable LBCD design LBCD linear bearings must be secured in the axial plane
