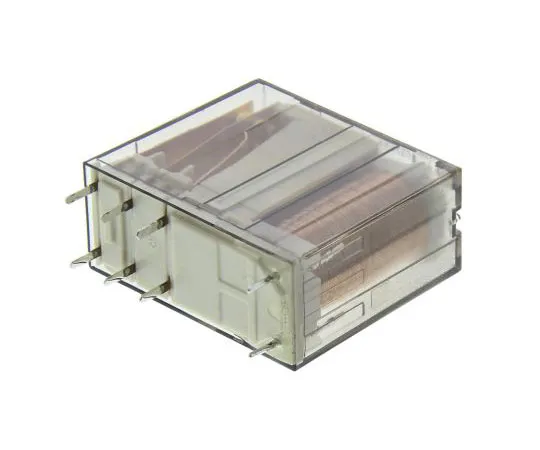

63-7452-06 TE Connectivity DPDT Non-Latching Relay PCB Mount, 12V dc Coil, 8A RP421012
model:
63-7452-06
brand:
TE Connectivity
Product Description
Product Model: 63-7452-06Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7452-06
Product Brand: TE Connectivity
Features
- UL, CSA, VDE. TE Connectivity RPII Series PCB Power Relay. RPII series PCB power relays with 500mW coil power available with SPST, SPDT and DPDT contact configurations. Part numbers RP3-XXXX and RP4-XXXX are flux proof. Part numbers RP7-XXXX and RP8-XXXX are wash tight. Coil power: 500 mW Operating temperature range: -40 to +70°C Switching voltage: 250Vac Creepage and clearance: 8mm Applications: Power supply, domestic equipment, heating control, etc
Spec
- Quantity:1box(20pieces)
- Coil Voltage : 12V dc
- Coil Power : 500mW
- Coil Resistance : 270 Ω
- Isolation Coil To Contact : 4kV rms
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 8A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 400V ac
- Height : 25.5mm
- CODE No.:164-1762
