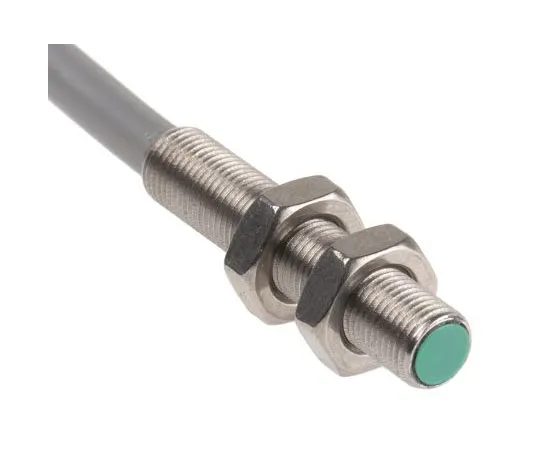

63-7448-23 Pepperl + Fuchs Inductive Sensor 0.8 mm Detection, M5 x 0.5, PNP-NO, 25mm Length, 10 → 30 V dc supply voltage NBB0,8-5GM25-E2
Electronic/Electrical Parts and Controll Equipments

63-7448-23 Pepperl + Fuchs Inductive Sensor 0.8 mm Detection, M5 x 0.5, PNP-NO, 25mm Length, 10 → 30 V dc supply voltage NBB0,8-5GM25-E2

model: 63-7448-23
brand: Pepperl + Fuchs

Product Description

Product Model: 63-7448-23Product Brand: Pepperl + Fuchs […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-7448-23
Product Brand: Pepperl + Fuchs

Features

  • Standard Sensing Range. A range of Pepperl + Fuchs inductive sensors available in different sensing and temperature ranges to suit a variety of industrial applications. Features and benefits. Nickel plated brass housing with PBT face. LED indication. Embeddable, flush or non-flush installation available. IP67. Supply voltage 10 to 30Vdc. Short circuit and reverse polarity protection. Pre-wired types have 2m PVC cable. Plug-in types have M12 type connector

Spec

  • Quantity:1piece
  • Body Style : Barrel
  • Thread Size : M5 x 0.5
  • Output Type : PNP-NO
  • Detection Range : 0.8 mm
  • Terminal Type : Cable
  • Supply Voltage : 10 → 30 V dc
  • Length : 25mm
  • Maximum DC Voltage : 30V
  • Mounting Type : Flush Mount
  • Switching Current : 200 mA
  • Housing Material : Stainless Steel
  • Short Circuit Overload Protection : Yes
  • CODE No.:249-2344
