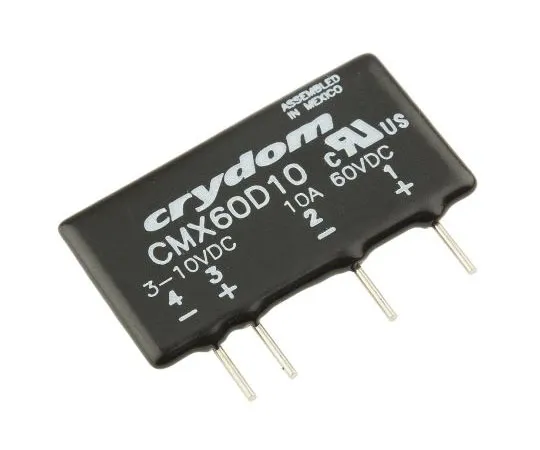

63-7445-01 Sensata / Crydom 10 A rms Solid State Relay, DC, PCB Mount, MOSFET, 60 V dc Maximum Load CMX60D10
model:
63-7445-01
brand:
Sensata / Crydom
Product Description
Product Model: 63-7445-01Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-7445-01
Product Brand: Sensata / Crydom
Features
- UL. CMX-SIL SSR up to 10Adc. These MOSFET output solid state relays offer DC switching in a PCB style SIP package. Typically application is for the control of solenoid valves. They are also ***d to drive the DC coils on larger contactors in a microprocessor driven control system, and ***d for in DC lighting control. MosFET output Extra low on-state resistance Industry standard footprint DC Control Surge current peak: 100A Input-Output capacitance: 15pF Operating temperature range: -30 to +80°C Dimensions H33mm x W7.6mm x D43.1mm
Spec
- Quantity:1piece
- Minimum Load Current : 0 A
- Maximum Load Current : 10 A rms
- Mounting Type : PCB Mount
- Minimum Load Voltage : 1 V dc
- Maximum Load Voltage : 60 V dc
- Minimum Control Voltage : 3 V dc
- Maximum Control Voltage : 10 V dc
- Switching Type : DC
- Terminal Type : PCB Pin
- Output Device : MOSFET
- Dimensions : 43.1 x 7.6 x 25.4mm
- Minimum Operating Temperature : -30°C
- CODE No.:244-8993
