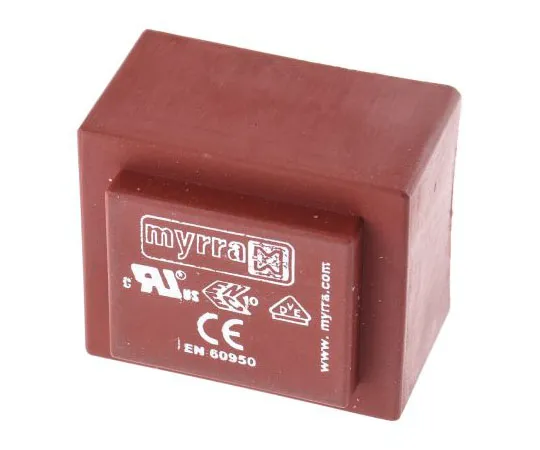

63-7398-84 12V ac 2 Output Through Hole PCB Transformer, 3.2VA 44201
Product Description
Product Model: 63-7398-84Product Brand: Myrra Features […]
Contact Us
Product Details
Product Model: 63-7398-84
Product Brand: Myrra
Features
- UL, VDE. Type EI 38 / 13.6 → 3.2 VA transformers. Secondary voltages are nominal load voltages on resistive loads.
Spec
- Quantity:1piece
- Secondary Voltage Rating : 12V ac
- Power Rating : 3.2VA
- Primary Voltage Rating : 230V ac
- Number of Outputs : 2
- Length : 41mm
- Depth : 28mm
- Dimensions : 41 x 35 x 28mm
- Weight : 150g
- Mounting Type : Through Hole
- Maximum Temperature : +70°C
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- CODE No.:173-9872
