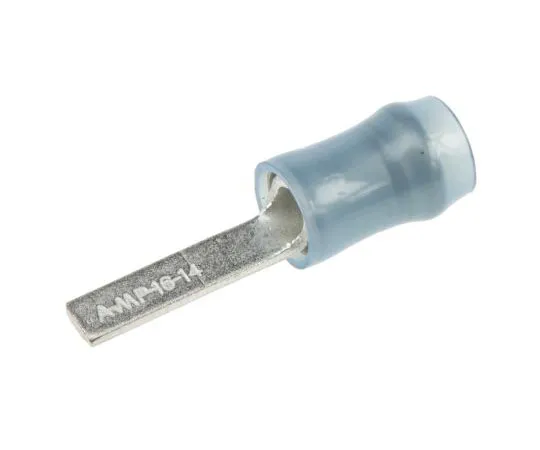

63-7383-85 TE Connectivity PIDG Series Insulated Crimp Blade Terminal 12.57mm Blade Length, 1mm² to 2.6mm², 16AWG to 14AWG, Blue 131330
model:
63-7383-85
brand:
TE Connectivity
Product Description
Product Model: 63-7383-85Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-7383-85
Product Brand: TE Connectivity
Features
- UL recognised. Not for *** with double wire. TE Connectivity PIDG Blade Wire Crimp Terminals. PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Spec
- Quantity:1box(1000pieces)
- G***er : Male
- Insulation : Insulated
- Insulation Material : Nylon
- Minimum Wire Size mm² : 1mm²
- Maximum Wire Size mm² : 2.6mm²
- Minimum Wire Size AWG : 16AWG
- Overall Length : 22.63mm
- Blade Length : 12.57mm
- Blade Width : 2.92mm
- Colour : Blue
- Contact Plating : Tin
- Contact Material : Copper
- CODE No.:163-9099
