63-7352-05 IXYS VBO22-16NO8, Bridge Rectifier Module, 17A 1600V, 4-Pin FO B B VBO22-16NO8
Product Description
Product Model: 63-7352-05Product Brand: IXYS Features U […]
Contact Us
Product Details
Product Model: 63-7352-05
Product Brand: IXYS
Features
- UL registered E 72873. Bridge Rectifier Module with Push-on Terminals, VBO2x Series, IXYS. Very low leakage current Very low forward voltage drop Improved thermal behaviour
Spec
- Quantity:1box(50pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 17A
- Peak Reverse Repetitive Voltage : 1600V
- Mounting Type : Screw Mount
- Package Type : FO B B
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 440A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 2.2V
- Peak Reverse Current : 300µA
- Length : 28.5mm
- Width : 28.5mm
- CODE No.:168-4437
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7492-04 Legris Pneumatic Bulkhead Tube-to-Tube Adapter Straight Push In 10 mm to Push In 10 mm 3116 10 00
model: 63-7492-04
brand: Legris
Electronic/Electrical Parts and Controll Equipments

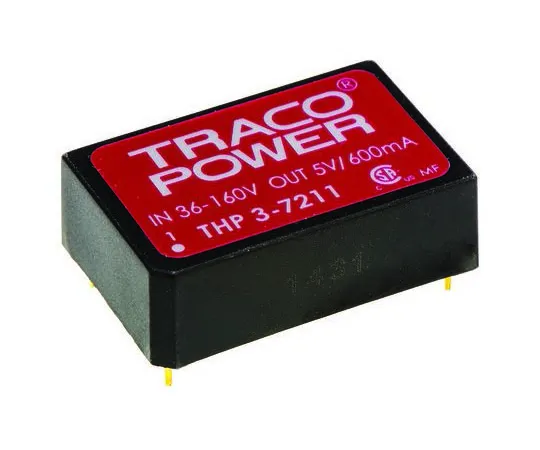

63-7658-59 TRACOPOWER THP 3 3W Isolated DC-DC Converter Through Hole, Voltage in 36 → 160 V dc, Voltage out 5V dc Medical THP 3-7211
model: 63-7658-59
brand: TRACOPOWER
Electronic/Electrical Parts and Controll Equipments
63-7495-31 SES Sterling Cutting Wire for *** with Hot Wire Cutting Machines 6250260000
model: 63-7495-31
brand: SES Sterling
Electronic/Electrical Parts and Controll Equipments

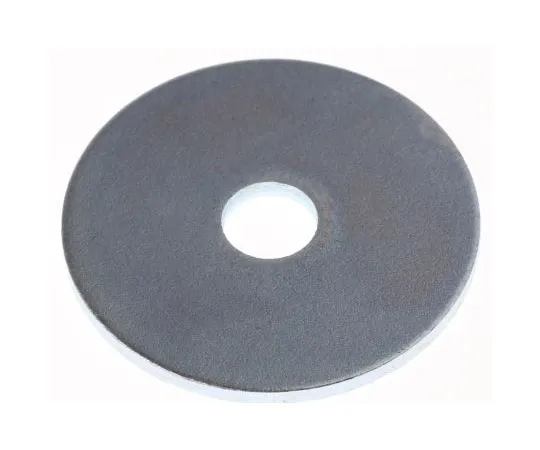

63-7659-98 Bright Zinc Plated Steel Mudguard Washer, M6 x 30mm, 1.5mm Thickness 666-7769
