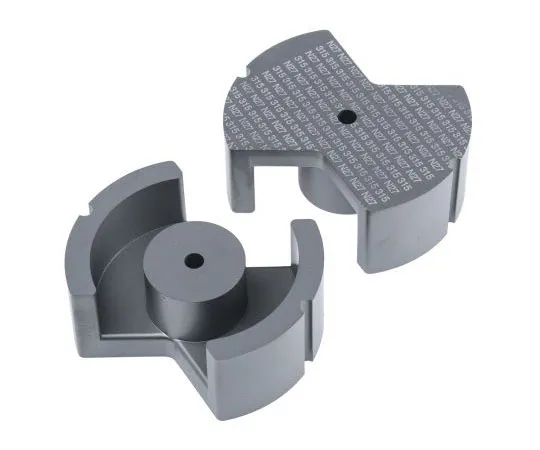

63-7351-38 EPCOS N27 PM 74/59 Ferrite Core Transformer, 315nH, 85.5 x 75 x 65mm, For Use With Energy storing choke B65686A0315A027
Product Description
Product Model: 63-7351-38Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7351-38
Product Brand: EPCOS
Features
- EPCOS B65820 PM74/59 Ferrite cores. EPCOS B65820 PM74/59 Ferrite cores are suitable for *** in transformers handling high powers in the frequency range up to 300 kHz. These PM Cores can be ***d in numerous tasks in telecommunications and industrial electronics. The pot core shape offers various advantages. Wide flux area for high power at a minimum no of turns, thus causing only low magnetic leakage and stray capacitance. The ferrite core also has good shielding owing to the closed form, precisely ground air caps, straightforward assembly and economic mounting.
Spec
- Quantity:1box(10sets)
- Accessory Type : PM 74/59
- For Use With : Energy storing choke
- Dimensions : 85.5 x 75 x 65mm
- AL Rating : 315nH
- Material : N27
- Depth : 59mm
- Length : 74mm
- CODE No.:167-8303
