63-7343-41 ON Semiconductor SMBJ120CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ120CA
model:
63-7343-41
brand:
ON Semiconductor
Product Description
Product Model: 63-7343-41Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-7343-41
Product Brand: ON Semiconductor
Features
- Transient Voltage Suppressors SMT Bidirectional 600W, SMBJ Series, Fairchild Semiconductor. Glass-Passivated Junction 600W Peak Pulse Power Capability Excellent Clamping Capability Low-Incremental Surge Resistance Fast Response Time UL Certificate #E258596 UL94V-0 Flammability Classification
Spec
- Quantity:1set(3000pieces)
- Direction Type : Bi-Directional
- Maximum Clamping Voltage : 193V
- Minimum Breakdown Voltage : 133V
- Mounting Type : Surface Mount
- Package Type : DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage : 120V
- Pin Count : 2
- Peak Pulse Power Dissipation : 600W
- Maximum Peak Pulse Current : 3.1A
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -55 °C
- Maximum Operating Temperature : +150 °C
- Width : 3.95mm
- CODE No.:166-3010
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5163-66 RS PRO 1.75mm Translucent Blue PET-G 3D Printer Filament, 500g 891-9296
model: 63-5163-66
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments
63-4868-27 Amphenol FCI Delta D Series, 25 Way Through Hole PCB D-sub Connector Socket, 2.76mm Pitch D25S24A4GV00LF
model: 63-4868-27
brand: Amphenol FCI
Electronic/Electrical Parts and Controll Equipments

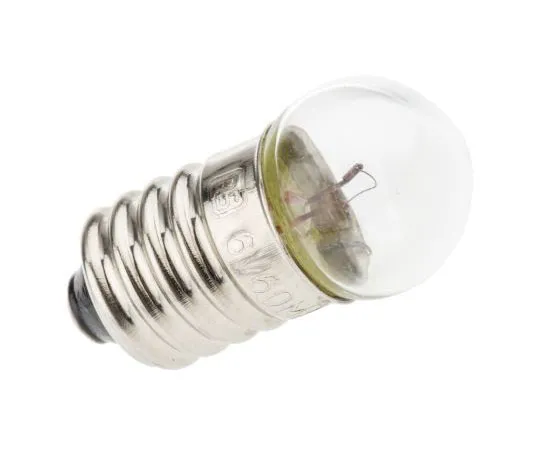

63-7652-99 E10 Indicator Light, Clear, 6 V, 60 mA, 10000h 655-9643
