Features

• 1 x Flexible Current Sensor, 2 x 1.5 V AA/LR6 Alkaline Batteries, 1 x User Manual in 5 Languages, 1 x Safety Data Sheet, 1 x Certificate

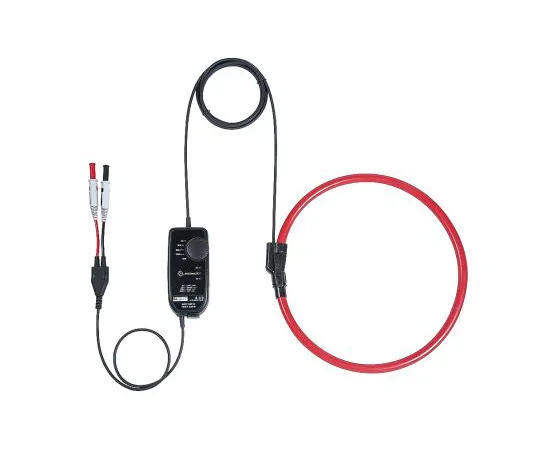

• Chauvin Arnoux AmpFLEXR A110 Series Flexible Current Sensors
• These compact, lightweight, ergonomic sensors of various calibers can clamp any type of conductor, regardless of number, size, or shape (bars, etc.). Its flexibility allows it to be ***d anywhere, no matter how narrow. Ideal for both industrial and tertiary sector requirements. Quick and easy opening and closing system allows easy handling even when wearing safety gloves.
• The AmpFlexR A110 Series consists of three flexible sensor models that can be directly connected to a multimeter, power meter, or logger. Main advantages of flexible coils: Large measurement rangeBandwidth suitable for industrial frequency and harmonic analysisNo saturation effects, constant low phase shift suitable for measuring power meters that do not overheat
• Features and advantages: Measurement range: 80 mA → 30 kA
• 4 measuring instruments
• Sensor length (clamp diameter): 45 cm, 80 cm, or 1.20 m (O14 cm, O25 cm, O38 cm)
• Sensor/processor approach protection: IP67/IP54
• Output signal: AC voltage
• Output via 2-wire leads terminated by a 2 x O4 mm straight os-banana safety connector
• Power supply: 1.5 V AA battery x 2 or external μUSB type B 5 V
• Battery life: 300 hours
• 1000 V CAT IV
• Single-phase flexible current sensor
• IP67
