Features

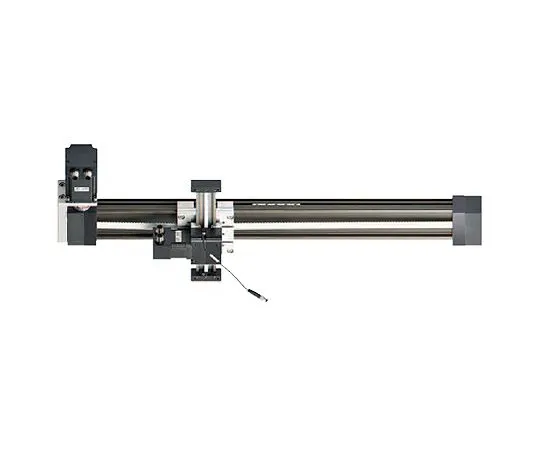

• Igus DrylinR E Gantry The gantry consists of multiple linear axes to implement multidimensional movement. Use the Igus gantry to automate tasks to reduce costs and reduce production time. Igus offers flat gantries, line gantries, and room gantries for a variety of tasks. The igusR gantry includes a pre-configured drylinR linear module/shaft with a NEMA stepper motor and all components required for automated manufacturing.
• Features and Advantages: Drive System: Teething Belt and Teething Rack
• Quick Assembly
• Defined Stroke Length
• No External Lubrication
• Clean and Corrosion-Free Operating Environment
• Line Gantry
• Igus line gantry can be ***d for applications with a maximum load of 2.5 kg, accuracy of 0.2 mm and a maximum speed of 1 m/s. Easy installation, ideal for pick-and-place applications, sorting equipment and microelectronics.
• Flat Gantry
• The Igus flat gantry can be ***d for applications with a maximum load of 30 kg, a precision of 0.5 mm, and a maximum speed of 1.5 m/s. Easy installation, ideal for automated measurement and testing.
• Room Gantry
• Igus Room Gantry can be ***d for applications with a maximum load of 2.5 kg, a precision of 0.8 mm, and a maximum speed of 0.5 m/s. Easy installation, ideal for easy handling of small parts, automation of medical technology and testing.
