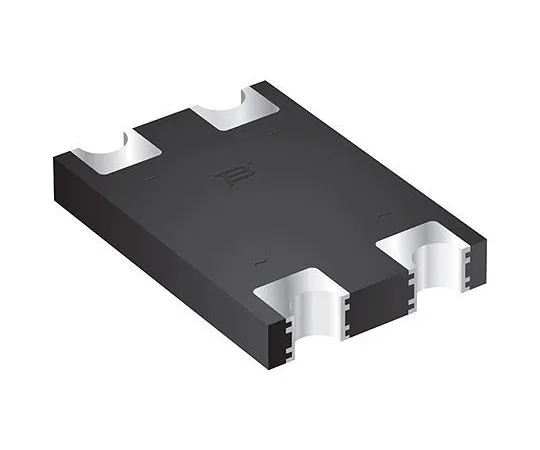

63-7001-50 Bourns CD-MBL210S, Bridge Rectifier, 2A 1000V, 4-Pin SMT CD-MBL210S
Product Description
Product Model: 63-7001-50Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-7001-50
Product Brand: Bourns
Features
- Compact SMT Bridge Rectifier, Bourns Electronics
- The high-performance bridge rectifier series is manufactured by Bourns Electronics in a compact surface mount chip package.
- Compact, low-profile SMT package Rated voltage: 600 V or 1000 V Rated order current: 2 A or 4 A
Spec
- Quantity:1bag(25pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 2A
- Peak Reverse Repetitive Voltage : 1000V
- Mounting Type : Surface Mount
- Package Type : SMT
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 50A
- Maximum Operating Temperature : +175 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 5µA
- Length : 5.9mm
- Width : 5.4mm
- CODE No.:126-1767
