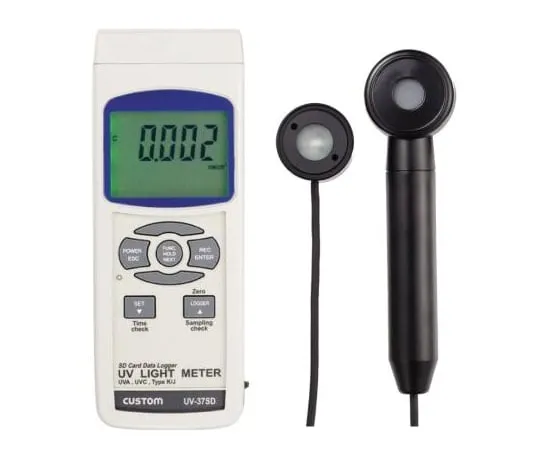

1-1934-01 Data Logger Ultraviolet Intensity Meter UV-37SD
Product Description
Product Model: 1-1934-01Product Brand: CUSTOM corporati […]
Contact Us
Product Details
Product Model: 1-1934-01
Product Brand: CUSTOM corporation
Features
- Data being measured can be stored in real time on an SD card (sold separately).
- A thermocouple sensor (IK series (1-5522-01~), sold separately) can also be ***d to measure temperature.
Spec
- Model number: UV-37SD
- Measurement range (ultraviolet rays/temperature): 0.001 - 19.99mW/cm2/-50 to +1300℃
- Resolution (ultraviolet rays/temperature): 0.001mW/cm2, 0.01mW/cm2/0.1℃
- Measurement accuracy: Ultraviolet rays/ ±(4%FS + 2dgt), Temperature/ ±(0.4%rdg + 0.5℃)
- Sampling: Available to set arbitrarily
- Display: 3.5 digits LED display
- Power supply: AA battery x 6 pieces (included for test), AC adapter (optional)
- Weight: Approx 489g
- Size: Body/68 x 45 x 177mm, Sensor (UVA probe)/φ45 x 32 x 170mm, code length/about 350 - 770mm, Sensor (UVC probe)/φ38 x 27mm, code length/about 450 - 900mm
- Auto power OFF, With data holding function
- *SD card and adapter are sold separately.
- Temperature measurement is also available by using thermocouple sensor (IK series sensor probe).
