Features

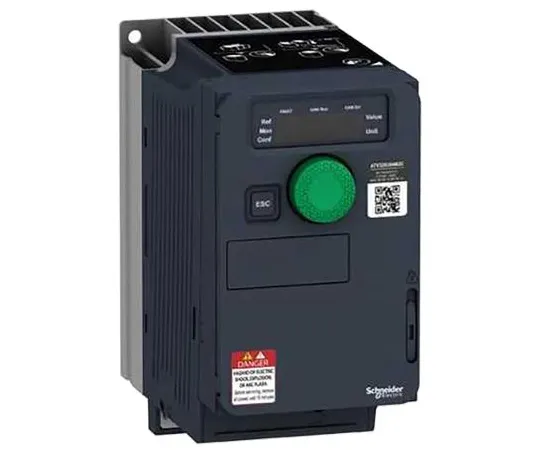

• Altivar ATV320 Series
• The Altivar Machine ATV320 variable-speed drive is simple, yet enhanced in every way. They are designed for OEMs and meet the simple and sophisticated requirements of 0.18 ~ 15 kW three-phase synchronous and asynchronous motors. This type of VFD is an ideal solution for improving machine effectiveness in a variety of applications.
• Features and benefits: Enhanced automation with open-loop motor control combined with simplicity of asynchronous and synchronous motors, slow dynamic precision for start/stop applicationsAdvanced connectivity with automation architectures such as EtherNet/IP-Modbus TCP, Profinet EtherCAT, Profibus, CANopen, DeviceNetFeatures such as ATVLogicAltivar Machine ATV320 variable speed drives continue the tradition of robustness and reliability of previous models Maximize machine uptime (especially during production changes) by providing timely safety diagnostics and safety operations, system integration, and network configurationATV320 supports multiple machine layouts and is designed to be a cost-effective and simple installation inside locations such as cabinets and machine framesThese VFDs are robust, strong, and reliable, IEC60721-3-3 Class 3C3 Coated substrate and variable frequency drives to increase machine availability in harsh environments Various mounting options dep***ing on the machine (Use the option to offset the control module if you are installing the drive vertically, horizontally, or sideways;) Additional safety torque off, integrated safety account with 4 functions of full safety monitoring to single insure machine certification and compliance with Machine Directive 2006/42/EC Easily installed communication card in cassette format
• Where is the variable frequency drive usually located
• ATV320 series meets both simple and advanced mechanical requirements Can be ***d for both mechanical and electrical equipment Raw material processing - Small conveyor packaging - Small labelling machine, Small bagging machine Machining equipment with fan - Air or smoke venting, plastic film making machines, ovens, boilers, etc. Handling of access barriers, rotating billboards, etc, Simple consumer mechanicsHealth industries such as medical beds and running machinesFlour mills, kneading mixers, and mixers in the food and beverage industryAn excellent solution for companies that need to lift and move products and materialsInverter drivesHow to maintain an ATV320 Series VFD Although the Altivar 12 does not require any preventative maintenance, it is recomm***ed that you perform some regular checks to optimize performance.　The state and tightness of all connections.　The temperature around the unit is maintained at an acceptable level and ventilation is effective. The average service life of a fan is 10 years.　Remove any visible dust.　The fan must always operate properly and the cover must not be physically damaged.
