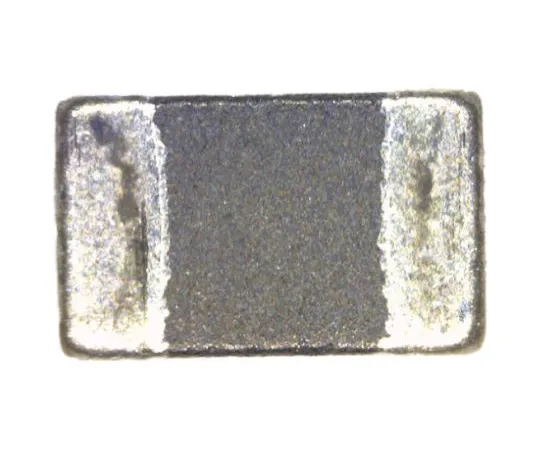

63-6979-96 Murata LQM21F Series 10 μH ±20% Ferrite Multilayer SMD Inductor, 0805 (2012M) Case, SRF: 15MHz 100mA dc 390mΩ Rdc LQM21FN100M80L
Product Description
Product Model: 63-6979-96Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6979-96
Product Brand: Murata
Features
- Murata 0805 LQW21F Series Laminated Chip Choke with Magnetic Shield
- LQM21 Series chip inductor with magnetic shield. It was developed using Murata's original laminating process technology and magnetic materials. The miniature size of 2.0 x 1.25 mm makes it possible to design small electrical devices.
Spec
- Quantity:1set(3000pieces)
- Series : LQM21F
- Inductance : 10 μH
- Tolerance : ±20%
- Maximum DC Current : 100mA
- Maximum Self Resonant Frequency : 15MHz
- Package/Case : 0805 (2012M)
- Maximum DC Resistance : 390mΩ
- Core Material : Ferrite
- Dimensions : 2 x 1.25 x 1.25mm
- Depth : 1.25mm
- Height : 1.25mm
- Length : 2mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:125-3194
