Features

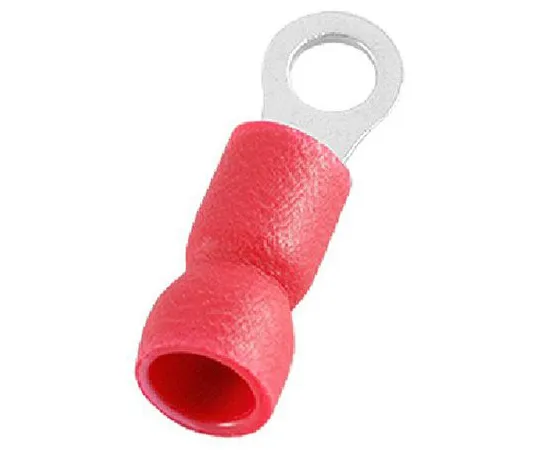

• RS PRO Vinyl Insulated Round Crimping Terminal
• This is a high-quality RS PRO series insulated round crimping terminal also known as a ring connector or cable lug. Round crimp terminals are ***d to connect electrical cables and wires to studs or posts in electrical components such as battery terminals. Round terminals are molded from highly conductive copper and tin plated to maximize conductivity and corrosion resistance. Vinyl insulation with identification colors ****s protect the terminal and quickly identify the terminal size. When properly crimped to the wire or cable, this round terminal provides a safe and reliable electrical connection.
• Features and Advantages: Copper body material has high conductivity, easy crimping, increases corrosion resistance, provides additional strength and excellent conductivityVinyl insulation for tin plating electrical insulation and terminal protectionEasy identification of terminal size by insulation with color Extensive insulation entry for easy insertion of wiresMaximum temperature ***d: 150 °C.Use: These insulated crimped ring wire connectors are ***d in a variety of industries to connect wires to electrical components. Applications include wiring for industrial control systems, industrial machinery, automobiles, communications equipment, power supplies, and ho***hold appliances.
• Selecting the Right Size Round Terminal
• The following points should be considered when selecting a round terminal suitable for your application.
• Wire gauge mm (metric method) or AWG (American wire gauge standard) of the wire or cable being ***d Size of the stud connecting the round terminal Inner diameter of the round terminal
• How to crimp the round terminal
• First, select the round terminal of the correct size. Remove the *** of the wire and cut it so that it is the same length as the terminal. Insert the wire into the terminal barrel so that the bare wire is not visible. You are now ready to crimp the crimp terminal to the *** of the wire. Although pliers and ratchets can be ***d to crimp wire terminals, we recomm*** that you *** a ratchet crimp tool for better crimping. Beca*** the handle remains locked until the crimp cycle is complete, we recomm*** that you *** a ratchet crimp tool. This prevents a half-finished crimp. Insert the barrel of the round terminal into the appropriate crimp (size indicated on the tool). Squeeze the tool handle until the ratchet is released. The round crimp terminal can now be placed on the stud or post and secured in place by nuts or soldering.
• Suitable crimping tools
• RS PRO part number for suitable ratchet crimping tools; See 125-1964 125-1964.
