Electronic/Electrical Parts and Controll Equipments

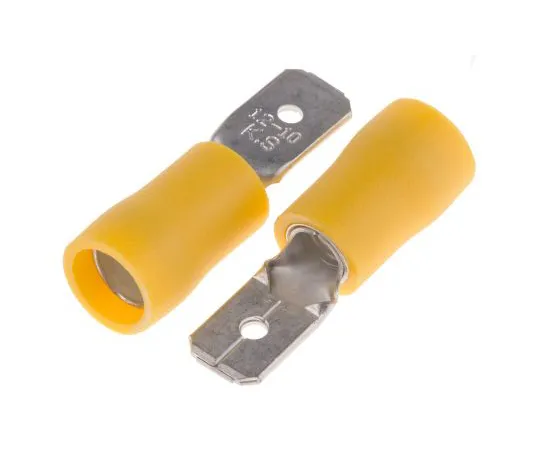

63-6977-68 RS Pro, Yellow Insulated Crimp Tab Terminal, 4mm² to 6mm², 12AWG to 10AWG, 6.35 x 0.8mm 125-1954
Product Description
Product Model: 63-6977-68Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6977-68
Product Brand: RS PRO
Features
- RS Pro Insulated Double Crimp Tab Terminal
- RS Pro insulated crimp tab wire terminal products are made of brass and have copper sleeve barrels. This ostat connector is insulated with vinyl or nylon, and allows easy insertion of wires for flaring. The insulation of this tab wire connector is color-coded for each wire size ***d.
Spec
- Quantity:1bag(100pieces)
- Insulation : Insulated
- Insulation Material : Vinyl
- Minimum Wire Size mm² : 4mm²
- Maximum Wire Size mm² : 6mm²
- Minimum Wire Size AWG : 12AWG
- Maximum Wire Size AWG : 10AWG
- Tab Width : 6.35mm
- Colour : Yellow
- Contact Material : Brass
- Overall Length : 24mm
- CODE No.:125-1954
