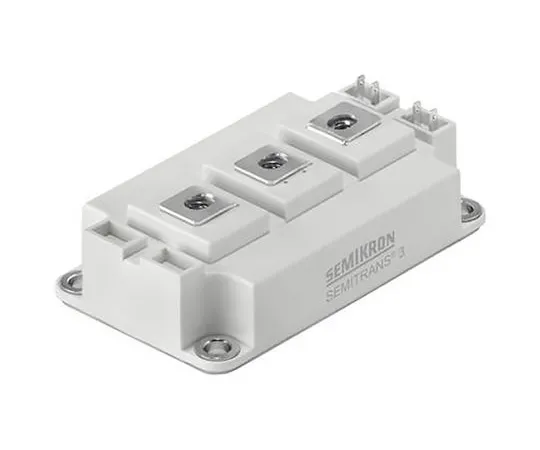

63-6973-44 Semikron SKM300GB12E4, SEMITRANS3 , N-Channel Dual IGBT Transistor Module, 422 A max, 1200 V, Screw Mount SKM300GB12E4
Product Description
Product Model: 63-6973-44Product Brand: Semikron Featur […]
Contact Us
Product Details
Product Model: 63-6973-44
Product Brand: Semikron
Features
- Dual IGBT Module
- Semikron's SEMITOPR IGBT Module product. Two series-connected (half-bridge) IGBT devices are included. Available in a variety of voltage and current rating types, it is suitable for various power switching applications such as AC inverter motor drives and uninterruptible power supplies.
- Compact SEMITOPR Package Optimized for Switching Frequencies up to 12 kHz Insulated Copper Base Plate Uses Copper Direct Joining Technology
Spec
- Quantity:1piece
- Configuration : Dual
- Maximum Continuous Collector Current : 422 A
- Maximum Collector Emitter Voltage : 1200 V
- Maximum Gate Emitter Voltage : 20V
- Channel Type : N
- Mounting Type : Screw Mount
- Package Type : SEMITRANS3
- Pin Count : 7
- Switching Speed : 12kHz
- Dimensions : 106.4 x 61.4 x 30.5mm
- Height : 30.5mm
- Length : 106.4mm
- Maximum Operating Temperature : +175 °C
- Minimum Operating Temperature : -40 °C
- CODE No.:125-1113
