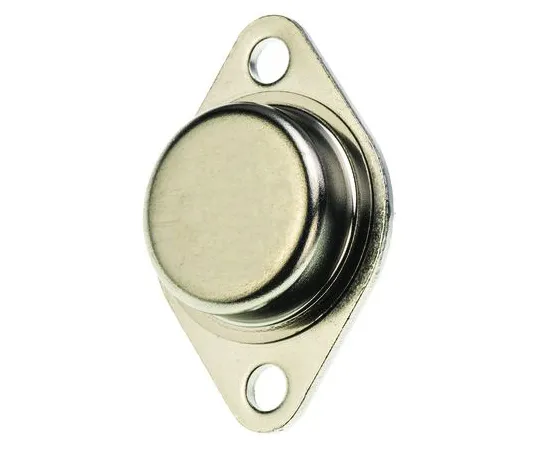

63-6968-53 ON Semi MJ802G NPN Transistor, 30 A, 90 V, 2-Pin TO-204AA MJ802G
model:
63-6968-53
brand:
ON Semiconductor
Product Description
Product Model: 63-6968-53Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-6968-53
Product Brand: ON Semiconductor
Features
- The manufacturer's part number with NSV at the top is an automotive product that conforms to the AEC-Q101 standard.
- NPN power transistor, ON Semiconductor
Spec
- Quantity:1set(100pieces)
- Transistor Type : NPN
- Maximum DC Collector Current : 30 A
- Maximum Collector Emitter Voltage : 90 V
- Package Type : TO-204AA
- Mounting Type : Through Hole
- Maximum Power Dissipation : 200 W
- Minimum DC Current Gain : 25
- Transistor Configuration : Single
- Maximum Collector Base Voltage : 100 V
- Maximum Emitter Base Voltage : 4 V
- Pin Count : 2
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -65 °C
- CODE No.:125-0069
