Electronic/Electrical Parts and Controll Equipments

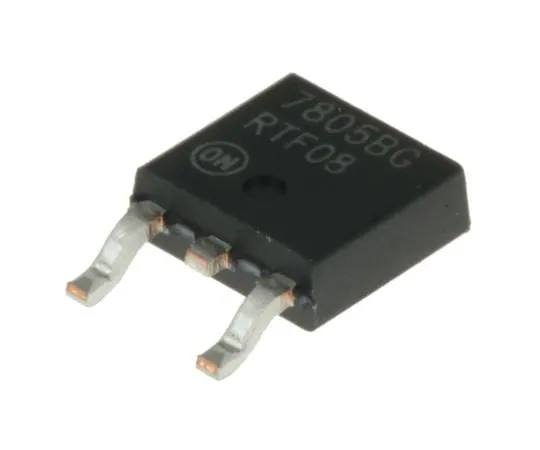

63-6968-36 ON Semiconductor, 5 V Linear Voltage Regulator, 2.2A, 1-Channel, ±4% 3-Pin, DPAK MC7805BDTG MC7805BDTG
model:
63-6968-36
brand:
ON Semiconductor
Product Description
Product Model: 63-6968-36Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-6968-36
Product Brand: ON Semiconductor
Features
- MC7805 Linear Voltage Regulator, ON Semiconductor
- The MC7805 family linear voltage regulator from ON Semiconductor is a fixed voltage regulator that can be ***d in a wide range of applications. This 7805 positive voltage regulator does not require external components and integrates internal thermal overload protection, current limitation, and safe operating area compensation.
- Output voltage: 5 V internal short-circuit current limiting output transistor safe operating region compensating lead-free package available
Spec
- Quantity:1set(75pieces)
- Output Voltage : 5 V
- Maximum Output Current : 2.2A
- Package Type : DPAK
- Output Type : Fixed
- Mounting Type : Surface Mount
- Maximum Input Voltage : 35 V
- Pin Count : 3
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +125 °C
- Number of Outputs : 1
- Polarity : Positive
- Accuracy : ±4%
- CODE No.:125-0048
