Features

• MC33071/2/4, MC34071/2/4, NCV33072/4, single power supply 3 → 44 V, operational amplifier, ON Semiconductor

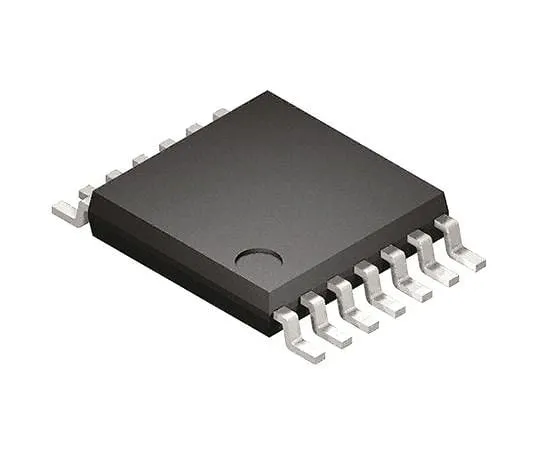

• ON Semiconductor's MC33071/72/74, MC34071/72/74, and NCV33072/74A series operational amplifiers are available in single, dual, and quad configurations.　It features a gain bandwidth product of 4.5 MHz, a slew rate of 13 V/μs, and fast settling time without JFET device technology.　This series also works with split power supplies but is suitable for single power supplies beca*** the common mode input voltage range includes ground potential (VEE).　These operational amplifiers feature high input resistance, low input offset voltage, and high gain. All products are provided in plastic DIP, SOIC and TSSOP surface mount packages.
• High speed settling time: 1.1 μs up to 0.1% Wide single power operation: 3 → 44 V Wide input common mode voltage range: including ground (VEE) Low input offset voltage: up to 3 mV (A suffix) High output voltage swing: -14.7 → +14 V (±15 V power supply) High capacitance driving capacity: 0 → 10,000 pF Low total harmonic distortion: 0.02% Excellent phase margin: 60 ° Excellent gain margin: 12 dB Short output protection
