Features

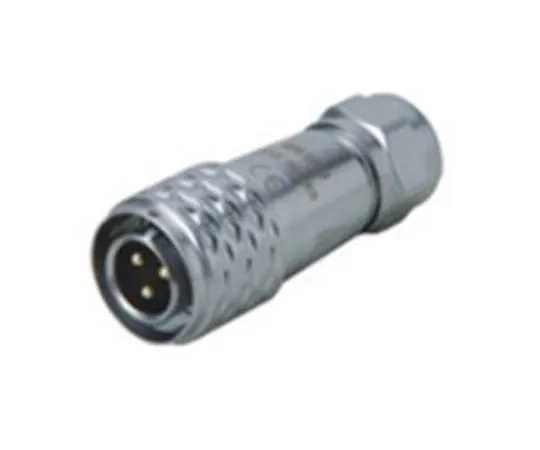

• M12 Push-Pull Cable Plug These RS Pro push-pull plugs are ideal candidates for a variety of applications.　It has a convenient push-pull connection, making it ideal for situations where accidental dropouts occur.　In addition, this industrial connector has an IP67 rating, making it suitable for harsh environments.　If you choose a male connector, this version is recomm***ed.
• Features and Benefits
• Features and Benefits
• Applications
• Panel Cutout Hole Diameter: 12 mm 2 pins, 3 pins, 4 pins, 5 pins also available Cable Outer Diameter: 4 → 6.5 mm, see part number below; 124-6739 124-6739; 124-6740 124-6740; 124-6741 124-6742 124-6741 124-6742 Cable outer diameter: 5 to 8 mm, see part numbers below.; 124-6743 124-6743; 124-6744 124-6744; 124-6745 124-6745; 124-6746 124-6746 Solder Terminals Chrome-plated Brass Shell Material
• The RS PRO series of 12 mm cable plugs are generally ***d in industrial applications
• The study connectors are ideal for harsher environments that demand a tougher connection solution
• Some of the most common areas are
• Test and measurement equipment Medical equipment Industrial automation Instrumentation and lab equipment Process control Factory Automation Marine equipment Sensors and switches
• Environment
• The RS PRO 12 mm Push-Pull series of connectors are waterproof and have an IP67 ingress rating
• This means the connectors are fully sealed from dust and are protected from water jets and partial submersion for a limited time
• FAQ Q-How robust are the connectors A The RS Components 12 mm circular connectors are manufactured from high-grade engineering materials The plugs are extremely tough and specifically designed for harsh environments Mating Parts; 124-6739 124-6739 mates with sockets; 124-6696 124-6705 124-6696 124-6705 or; 124-6709 124-6709; 124-6740 124-6740 mates with sockets; 124-6697 124-6697; 124-6706 124-6706 or; 124-6710 124-6710; 124-6741 124-6741 mates with sockets; 124-6698 124-6698; 124-6707 124-6707 or; 124-6711 124-6711; 124-6742 124-6742 mates with sockets; 124-6699 124-6699; 124-6708 124-6708 or; 124-6712 124-6712; 124-6743 124-6743 mates with socket; 124-6700 124-6700; 124-6744 124-6744 mates with socket; 124-6701 124-6701; 124-6745 124-6745 mates with socket; 124-6703 124-6703; 124-6746 124-6746 mates with socket; 124-6704 124-6704
