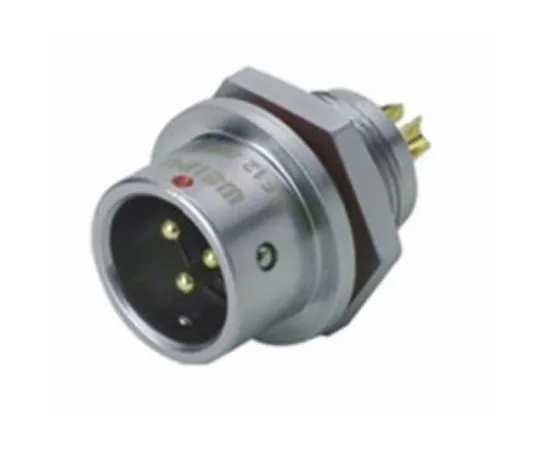

63-6952-13 RS PRO Panel Mount Connector, 3 Contacts, Miniature Connector 124-6723
Product Description
Product Model: 63-6952-13Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6952-13
Product Brand: RS PRO
Features
- M12 Push-Pull Front Mount
- These RS Pro push-pull plugs and sockets are ideal candidates for a variety of applications. It has a convenient push-pull connection, making it ideal for situations where accidental dropouts occur. In addition, this industrial connector has an IP67 rating, making it suitable for harsh environments. This version is recomm***ed if you choose a male/female connector.
- Features and Advantages
- Panel Cutout Hole Diameter: 12 mm 2 pins, 3 pins, 4 pins, 5 pins also available Cable Outer Diameter: 4 → 6.5 mm
- 5 → 8 mm Solder Terminal Chrome Plated Brass Shell Material Front Mounting G***er: Male/Female
Spec
- Number of Contacts:3
- Mounting Type:Panel Mount
- Connector Size:Miniature
- Plug/Socket:Plug
- Termination Method:Solder
- IP Rating:IP67
- Current Rating:13.0A
- Voltage Rating:250 V
- Mating Type:Push-Pull
- Body Orientation:Straight
- Housing Material:Metal
- Contact Material:Brass
- CODE No.:124-6723
