63-6951-88 RS PRO Cable Mount Connector, 2 Contacts, Miniature Connector 124-6696
Product Description
Product Model: 63-6951-88Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6951-88
Product Brand: RS PRO
Features

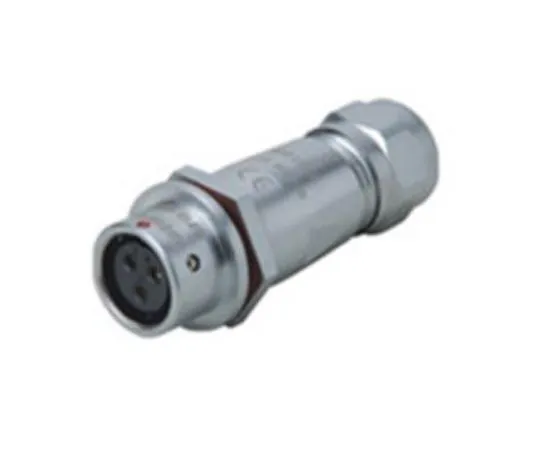

- M12 Inline Push Pull Cable Socket
- These RS Pro push pull sockets are ideal candidates for a variety of applications. It has a convenient push-pull connection, making it ideal for situations where accidental dropouts occur. In addition, this industrial connector has an IP67 rating, making it suitable for harsh environments. If you choose a female connector, we recomm*** this version.
- Panel Cutout Hole Diameter: 12 mm 2 pins, 3 pins, 4 pins, 5 pins also available Cable Outer Diameter: 4 → 6.5 mm, see part number below; 124-6696 124-6696; 124-6697 124-6697; 124-6698 124-6698; 124-6699 124-6699 Cable outer diameter: 5 → 8 mm, see part numbers below.; 124-6700 124-6700; 124-6701 124-6701; 124-6703 124-6703; 124-6704 124-6704 Solder Terminal Chrome Plated Brass Shell Material Inline Cable Installed
- Features and Advantages
Spec
- Number of Contacts:2
- Mounting Type:Cable Mount
- Connector Size:Miniature
- Plug/Socket:Socket
- Termination Method:Solder
- IP Rating:IP67
- Current Rating:13.0A
- Voltage Rating:250 V
- Mating Type:Push-Pull
- Body Orientation:Straight
- Housing Material:Metal
- Minimum Operating Temperature:-40°C
- CODE No.:124-6696
