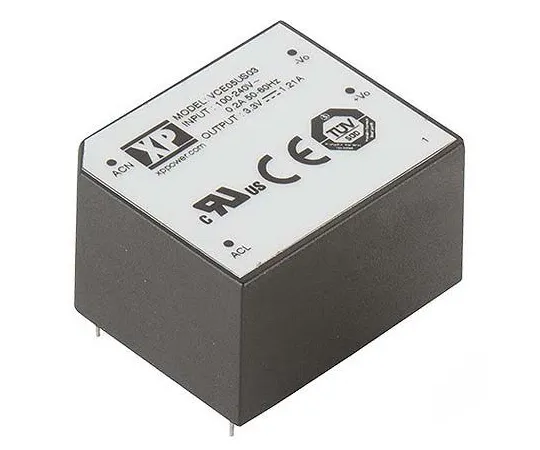

63-6951-15 AC/DC Converter 3 V dc 1.21 A 5 W sealed VCE05US03
Product Description
Product Model: 63-6951-15Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6951-15
Product Brand: XP Power
Features
- XP Power-VCE05 Series AC-DC Power Supply
- XP Power's VCE05 series is a highly reliable, sealed, single-output AC-DC power supply. Designed primarily for low-cost ITE and industrial applications. The VCE05 series meets the Conductive and Radiative Emission Standards Class B. This compact Class II design offers a single output range of 3.3~48 V for peak loads of 130% and 30 seconds.
- Features and Advantages: 3.3 V to 48 V Single Output Substrate Mounting Class II Input Power Without Load:; 0.3 W Compact Low Cost Peak Load
Spec
- Quantity: 1 piece
- Output Voltage: 3V dc
- Output Current: 1.21 A
- Rating Power: 5W
- Number of outputs: 1
- Input Voltage: 80 to 264 V ac
- Mounting type: PCB mount
- Package Type: Sealed
- Width: 27.94 mm
- Weight: 24 g
- Maximum temperature: + 70 degrees C
- Minimum temperature: -25 degrees C
- RoHS compliance status: Compliance
- Securities Code: 124 -6615
