63-6941-62 Connectors for Electric Vehicless 1 Row 1 Pole 300 A 1000 V ac/dc Male Orange C 10 -730191 - 0101 SLPIRCBPSO1
Product Description
Product Model: 63-6941-62Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6941-62
Product Brand: Amphenol
Features

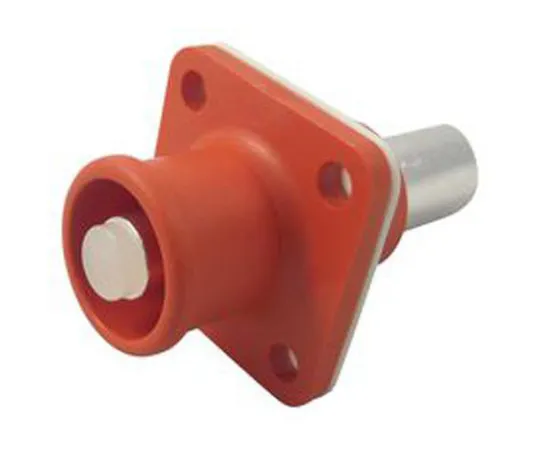

- 10.3 mm SurLok Plus Receptacle (For 85 mm, Key Position: 180 Degrees) This SurLok Plus series receptacle from Amphenol is a compact, quick-fit crimping lug with a panel-mounted flange. This receptacle has a sturdy, environment-resistant seal, can be installed on site, and is extremely reliable. R4 Radsock technology provides reliable, high-tensile connections to highly conductive surfaces. This receptacle has a pin diameter of 10.3 mm and is designed to terminate 70 mm2 wires.
- Features and Benefits: Anti-Contact Key Mechanisms to Prevent Causing Wrong (Key Position: 180 Degrees) Spring-Locked IP67 Flame Retardant Rating: UL94-V0
- Application: SurLok Plus Series connectors are commonly ***d in electric vehicle applications (EV/HEV) and railways. It is also ***d for process control, medical, and BMS/power storage applications.
Spec
- Number of pieces: 1
- Range: R4 RADSOK
- Series: SurLok Plus
- Connector type: RADSOK Receptacle with HVIL
- Number of lines: 1
- Number of contacts: 1
- Cable sizes: 70 mm2, 85 mm2
- Current rating: 300 A
- Operating voltage: 1000 V ac/dc
- Connector G***er: Female
- Contact G***er: Male
- Depth: 68.8 mm
- RoHS compliance status: Compliance
- Securities Code: 124 -3977
