Electronic/Electrical Parts and Controll Equipments

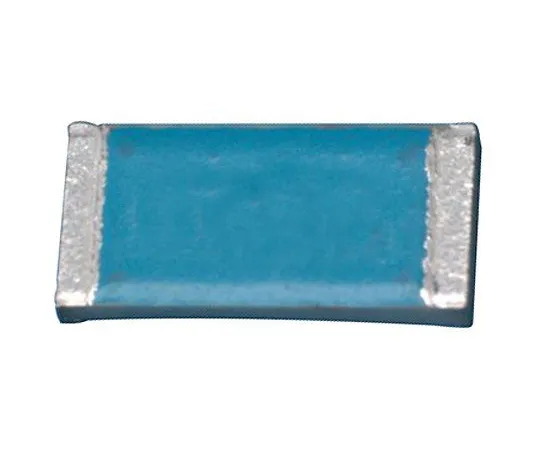

63-6891-94 Thick Film Chip Resistor 1005 Size 0.063 W 100 Ω ± 0.5% RK73G1ETTP1000D
Product Description
Product Model: 63-6891-94Product Brand: KOA Features AE […]
Contact Us
Product Details
Product Model: 63-6891-94
Product Brand: KOA
Features
- AEC-Q200
- 0402 Thick Film Chip Resistor, RK73G Series 0.5%
- KOA's RK73G Series is a highly accurate surface mount resistor. With a metal-glazed thick film structure and lead-free termination, this resistor features high reliability and stability. The temperature coefficient of resistance (TCR) of this precision resistor is ±50 ppm/°C. AEC-Q200 certified, ideal for automotive applications.
Spec
- Quantity: 1 bag (100 pieces)
- Resistance: 100 Ω
- Package/Case: 0402
- Tolerance: ± 0.5%
- Rating Power: 0.063 W
- Temperature Coefficient: ± 50 ppm/deg.
- Technology: Thick Film
- Dimensions : 1 x 0.5 x 0.35 mm
- Length: 1 mm
- Depth: 0.5 mm
- Height: 0.35 mm
- Series: RK 73 G
- Operating temperature Min: -55 °C
- Operating temperature Max: + 155 °C
- case styles: mold
- RoHS Compliance Status: Compliance
- Securities Code: 123 -4334
