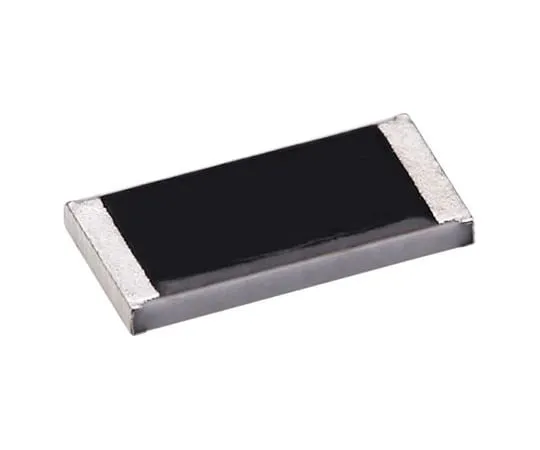

63-6876-77 Thin-film Chip Resistor 2012 size 0.1 W 22.6 ohm +/- 0.1% CPF0805B22R6E1
model:
63-6876-77
brand:
TE Connectivity
Product Description
Product Model: 63-6876-77Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6876-77
Product Brand: TE Connectivity
Features
- 0805 TE Connectivity CPF Series Precision Resistors 20 →69.8 Ω
- TE Connectivity CPF precision resistors consist of an alumina substrate and a nichrome (NiCr) resistance layer. 100% matte electrotin-plated finish. With a variety of standard case sizes, this chip resistor has uniformly accurate dimensions for easy placement. CPF series thin film precision resistors exhibit high stability and precise accuracy. This chip resistor has a resistance tolerance of at least 0.1% and a temperature coefficient of resistance (TCR) value as low as 15 ppm/°C.
- Accurate dimensions • High stability • High precision • Various resistance values for all applications • Temperature range: -55 → +155 °C • Product application information • Suitable applications for CPF precision resistors include communications, industrial control, instrumentation, and medical applications.
Spec
- Quantity: 1 bag (20 pieces)
- Resistance: 22.6 ohms
- Package/Case: 0805
- Tolerance: +/- 0.1%
- Rated power: 0.1 W
- Temperature factor: +/- 25 ppm/deg.
- Technology: Thin film
- Dimensions: 2 x 1.25 x 0.55 mm
- Length: 2mm
- Depth: 1.25 mm
- Height: 0.55 mm
- Series: CPF
- Operating temperature Min: -55 degrees C
- Operating temperature Max: + 155 degrees C
- Case Style: Mold
- RoHS compliance status: Compliance
- Securities Code: 123 -1298
