63-6875-58 Insulation DC-DC Converter Vout: ± 12 V dc 36 to 75 V dc 8 W 48 V dc JSE0848D12
Product Description
Product Model: 63-6875-58Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6875-58
Product Brand: XP Power
Features

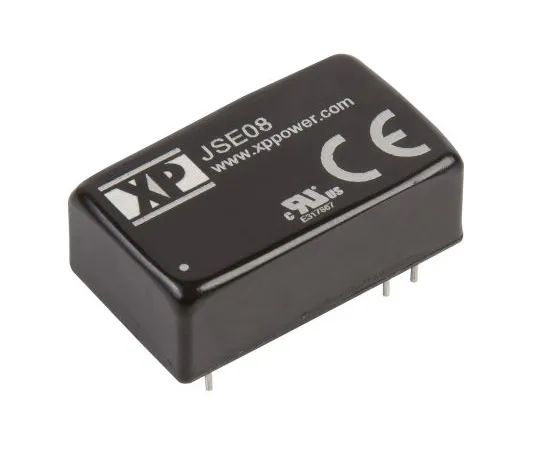

- XP Power-JSE08 Series Insulated DC-DC Converter
- The JSE08 series from XP Power is a reliable and stable single/dual output, 8W insulated DC-DC converter. This series of products is designed to be packaged in a DIP16 package, has a 2:1 input range, and complies with all ITE safety approvals. These compact DC-DC converters also have a high power density, a breakdown voltage of 1500 V dc, and a wide operating temperature range of -40 to +105 °C.
- 8 W Insulated DC-DC Converter 2:1 Input Range Stable Single/Dual Output DIP16 Package 1500 V dc Insulation Voltage ITE Safety Approved Wide Operating Temperature Range: -40 → +105 °C
Spec
- Quantity: 1 piece
- Output Voltage: ± 12 V dc
- Output voltage adjustment range: ± 2%
- Input voltage range: 36 to 75 V dc
- Input voltage nominal: 48 V dc
- Rating Power: 8W
- Output current: ± 335 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 86%
- Package: DIP 16
- Road regulation: ± 1%
- Maximum temperature: + 105 degrees C
- Series: JSE08
- RoHS compliance status: Compliance
- Securities Code: 123 -1179
