63-6875-32 Insulation DC-DC Converter Vout: 5 V dc 9 to 18 V dc 1 W 12 V dc IMM0112S05
Product Description
Product Model: 63-6875-32Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6875-32
Product Brand: XP Power
Features

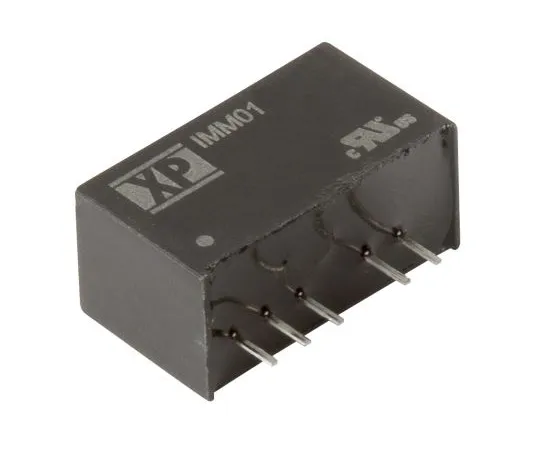

- XP Power-IMM01 Series Insulated DC-DC Converter
- The IMM01 series from XP Power is a reliable single/dual output, 1W insulated DC-DC converter. Packed in a compact SIP7 package, it has a 1500 V ac breakdown voltage and is certified by international medical standards. The operating temperature is -20 to +100 °C, and the environmental temperature is +60 °C for full load.
- 1 W Insulated DC-DC Converter 1500 V ac Insulation Voltage, 1 MOPP Single and Dual Output Environmental Temperature +60 °C Full Load Operating Temperature: -20 → +100 °C Small SIP7 Package
Spec
- Quantity: 1 piece
- Output Voltage: 5V dc
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1.5 kV ac
- Rating Power: 1W
- Output current: 200 mA
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: Yes
- Approved for railway ***: None
- Package: SIP7
- Load regulation: Maximum of 2%
- Maximum temperature: + 100 degrees C
- Series: IMM01
- RoHS compliance status: Compliance
- Securities Code: 123 -1153
