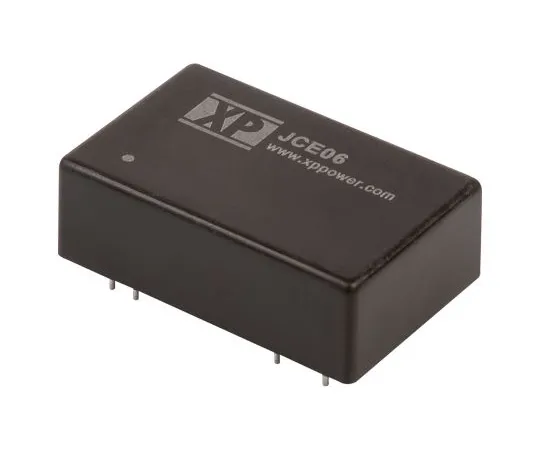

63-6860-41 Insulation DC-DC Converter Vout: ± 24 V dc 18 to 36 V dc 6 W 24 V dc JCE0624D24
Product Description
Product Model: 63-6860-41Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6860-41
Product Brand: XP Power
Features
- XP Power-JCE Series 6W Insulated DC-DC Converter
- XP Power's JCE series is a reliable single/dual output 6W insulated DC-DC converter. Features 1500 V dc breakdown voltage, 2:1 input range, and high efficiency up to 84%. This series is available in industry standard DIP-24 plastic packaging and is a complete convective cooling product.
- 6 W Insulated DC-DC Converter DIP-24 Plastic Package 2:1 Input Range Insulated Voltage 1500 V dc, 3000 V dc Optional Single Output and Dual Output High Efficiency 84% Convective Cooling Option Metal Case Substrate Mounting Operating Temperature Range: -40 → +100 °C
Spec
- Quantity: 1 piece
- Output Voltage: ± 24 V dc
- Output voltage adjustment range: ± 2%
- Input voltage range: 18 to 36 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 1.5 kV dc
- Rating Power: 6W
- Output current: ± 125 mA
- Mounting type: through hole
- Number of outputs: 2
- Efficiency: 82%
- Package: DIP 24
- Road regulation: ± 5%
- Maximum temperature: + 100 degrees C
- Series: JCE
- RoHS compliance status: Compliance
- Securities Code: 122 -8163
