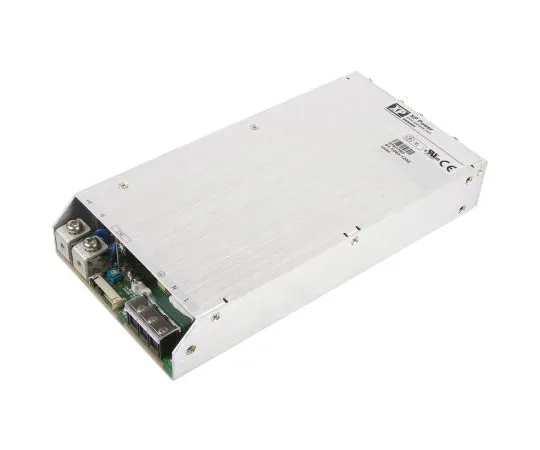

63-6858-23 AC/DC Converter 12 V dc 66.7 A 800 W with case HDS800PS12
Product Description
Product Model: 63-6858-23Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6858-23
Product Brand: XP Power
Features
- XP Power-HDS800 Series AC-DC Power Supply
- The XP Power HDS800 Series offers a variety of 800 W power supplies. These reliable, sealed power supplies have programmable output voltages and currents in the 0 ~ 105% range. Also, this series of products has high current density and very high efficiency of up to 92%.
- 800 W, sealed power supply 1U profile, high power density High efficiency of up to 92% Programmable output voltage (0 ~ 105%) Programmable output current (0 ~ 105%) Full function signal and control Parallel operation temperature: -20 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Output Current: 66.7 A
- Rating Power: 800 W
- Number of outputs: 1
- Input Voltage: 127 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: With Cover
- Length: 249 mm
- Width: 127 mm
- Depth: 40.9 mm
- Weight: 1.8 kg
- Efficiency: 89%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7827
