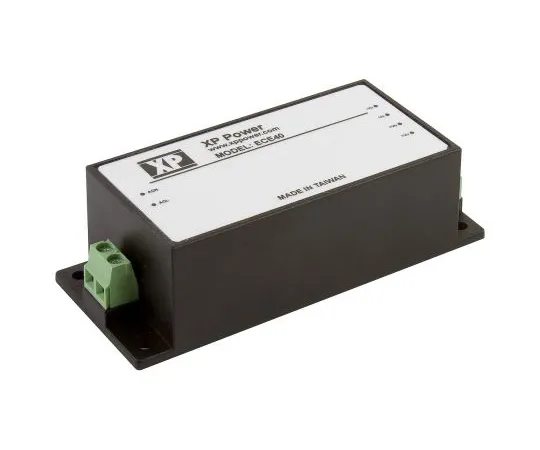

63-6857-06 AC/DC Converter 9 V dc 4.44 A 40 W sealed ECE40US09-S
Product Description
Product Model: 63-6857-06Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6857-06
Product Brand: XP Power
Features
- XP Power-ECE Series 20/40 W AC-DC Power Supply
- The ECE series from XP Power is an excellent 20 ~ 40 W board mount/chassis mount power supply. These highly reliable sealed power supplies feature an ultra-compact structure with a single output voltage of 3.3 ~ 48 V. It also boasts less than 0.3 W of no-load input power, peak load handling, and high efficiency of up to 86%.
- 20 to 40 W AC-DC power supply 3.3 to 48 V single output sealed board-mounted version and chassis mounted version ultra-small, no-load input power:; High efficiency operating temperature of up to 86% for 0.3 W peak load: -25 → +70 °C
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output Current: 4.44 A
- Rating Power: 40 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Sealed
- Length: 96 mm
- Width: 40 mm
- Depth: 28.5 mm
- Weight: 170 g
- Efficiency: 80%
- Maximum temperature: + 70 degrees C
- Minimum temperature: -25 degrees C
- RoHS compliance status: Compliance
- Securities Code: 122 -7672
