Electronic/Electrical Parts and Controll Equipments

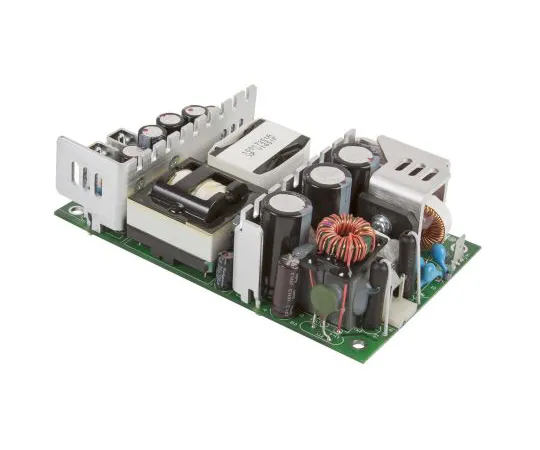

63-6856-79 AC/DC Converter 28 V dc 12.5 A 350 W Open Frame Y GCS350PS28
Product Description
Product Model: 63-6856-79Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-79
Product Brand: XP Power
Features
- XP Power-GCS Series Switch Mode Power Supply The XP Power GCS series switch mode power supply has a unit design that maximizes efficiency while minimizing no-load power consumption. This design ensures that equipment installations comply with the latest environmental laws and regulations. The single-output AC-DC power supply in this product series is an industry-standard 3 x 5 x 1.42 inch package and meets EN55011/22 Level B radiation standards. The GCS series is designed for 1U and other industrial, IT and medical applications.
- Features and benefits: Convective/forced cooling (rated). We are Class I/II IT/Medical Safety Certified. A remote on/off function is provided. Class B radiation.
Spec
- Quantity: 1 piece
- Output Voltage: 28 V dc
- Output Current: 12.5 A
- Rating Power: 350 W
- Number of outputs: 1
- Input Voltage: 85 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 127 mm
- Width: 76.2 mm
- Depth: 36.3 mm
- Weight: 290 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7644
