63-6856-76 AC/DC Converter 12 V dc 29.2 A 350 W Open Frame Y GCS350PS12
Electronic/Electrical Parts and Controll Equipments

63-6856-76 AC/DC Converter 12 V dc 29.2 A 350 W Open Frame Y GCS350PS12

model: 63-6856-76
brand: XP Power

Product Description

Product Model: 63-6856-76Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6856-76
Product Brand: XP Power

Features

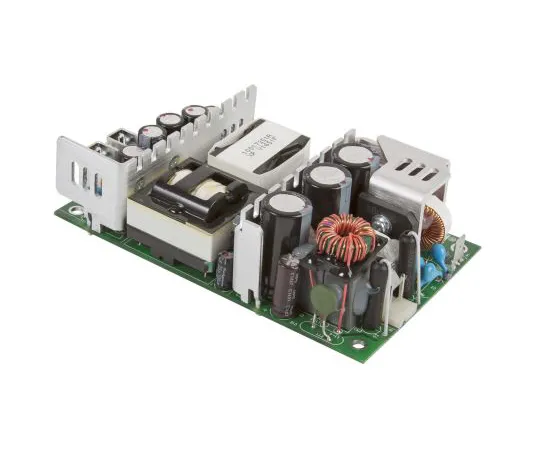

  • XP Power-GCS Series Switch Mode Power Supply The XP Power GCS series switch mode power supply has a unit design that maximizes efficiency while minimizing no-load power consumption. This design ensures that equipment installations comply with the latest environmental laws and regulations. The single-output AC-DC power supply in this product series is an industry-standard 3 x 5 x 1.42 inch package and meets EN55011/22 Level B radiation standards. The GCS series is designed for 1U and other industrial, IT and medical applications.
  • Features and benefits: Convective/forced cooling (rated). We are Class I/II IT/Medical Safety Certified. A remote on/off function is provided. Class B radiation.

Spec

  • Quantity: 1 piece
  • Output Voltage: 12 V dc
  • Output Current: 29.2 A
  • Rating Power: 350 W
  • Number of outputs: 1
  • Input Voltage: 85 to 264 V ac
  • Mounting Type: Chassis Mount
  • Package Type: Open Frame
  • Length: 127 mm
  • Width: 76.2 mm
  • Depth: 36.3 mm
  • Weight: 290 g
  • Maximum temperature: + 70 degrees C
  • Medical standards certification: Yes
  • RoHS compliance status: Compliance
  • Securities Code: 122 -7641
