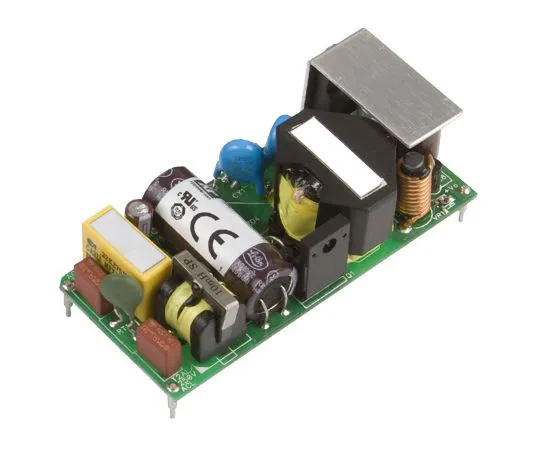

63-6856-57 AC/DC Converter 9 V dc 3.33 A 30 W Open Frame Y EML30US09-P
Product Description
Product Model: 63-6856-57Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-57
Product Brand: XP Power
Features
- XP Power-EML30 Series Switch Mode Power Supply
- The XP Power EML30 Series is an open-frame, encapsulated, AC-DC single-output power supply designed for medical applications. The EML30 Series is certified in a variety of safety standards around the world, including Class B medical safety and compliance. With this design, the EML30 series offers a high degree of flexibility, allowing engineers to easily integrate this product into modern medical devices.
- Features and Benefits: Certified for medical ***. Class II grade. Supports mounting options such as boards, open frames, and chassis. Sealed board/chassis mounting. The available output range is 3.3 to 48 V. Supports peak load.
Spec
- Quantity: 1 piece
- Output Voltage: 9V dc
- Output Current: 3.33 A
- Rating Power: 30 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 85 to 264 V ac
- Mounting Type: PCB Mount
- Package Type: Open Frame
- Length: 75.2 mm
- Width: 34.6 mm
- Depth: 22.3 mm
- Weight: 60 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7622
