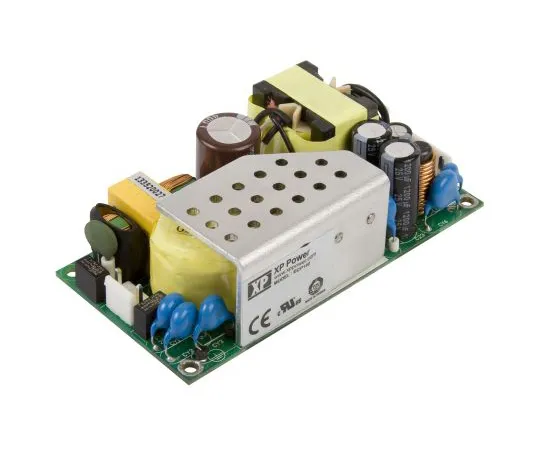

63-6856-30 AC/DC Converter 48 V dc 3.1 A 150 W Open Frame Y ECP150PS48
Product Description
Product Model: 63-6856-30Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6856-30
Product Brand: XP Power
Features
- XP Power-ECP150 Series Switch Mode Power Supply
- With a 150 W power supply, the XP Power ECP150 Series is a low-cost, board-mounted power solution for a wide variety of applications. The ECP150 series; It provides an output voltage of 5 to 15 V with a very low input power of 0.3 W. This series is designed to comply with the latest environmental laws and regulations. Beca*** of its low profile, this series offers a wide range of small, reliable power supplies that are Medical/ITE certified.
- Features and benefits: 2 x 4-inch footprint. 100 W (convective cooling), 150 W (forced cooling). ; 0.5 W (input power at no load). Single output is 12 to 48 V. Integrated fan power supply.
Spec
- Quantity: 1 piece
- Output Voltage: 48 V dc
- Output Current: 3.1 A
- Rating Power: 150 W
- Number of outputs: 1
- Input Voltage: 120 to 370 V dc, 90 to 264 V ac
- Mounting Type: Chassis Mount
- Package Type: Open Frame
- Length: 101.6 mm
- Width: 50.8 mm
- Depth: 29.5 mm
- Weight: 190 g
- Maximum temperature: + 70 degrees C
- Medical standards certification: Yes
- RoHS compliance status: Compliance
- Securities Code: 122 -7595
